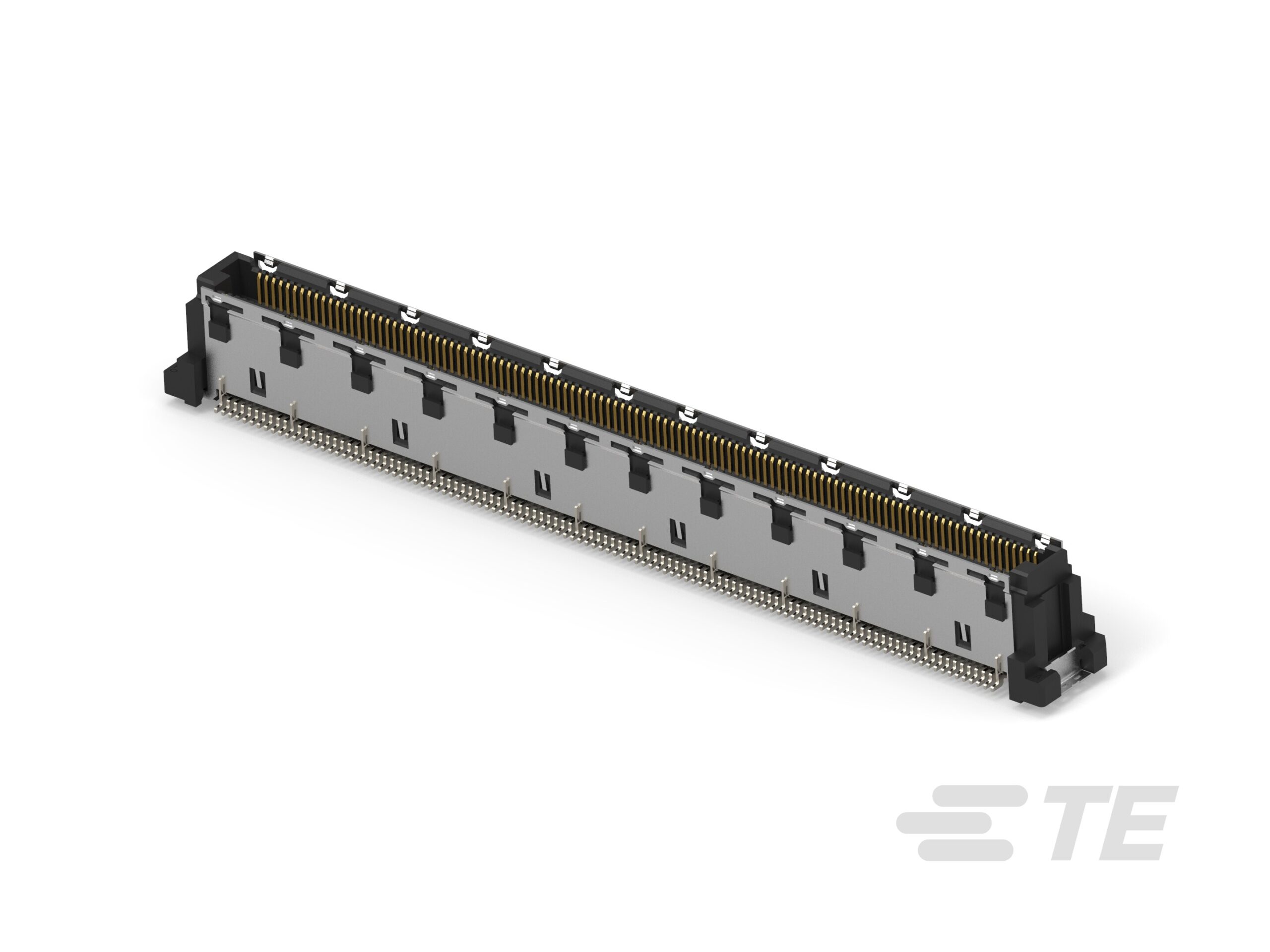

Arrays, Edge Type, Mezzanine (Board To Board) 2357798-4 product image

2357798-4

$56.32

Description：16G,05FH,PLUG,22OP 8H,T&R, W/O C
Series：Free Height (FH)
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e6ac4fc7deba Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: TE Connectivity AMP Connectors

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2357798-4 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is 16G,05FH,PLUG,22OP 8H,T&R, W/O C. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2357798-4

Description：16G,05FH,PLUG,22OP 8H,T&R, W/O C
Series：Free Height (FH)
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Plug, Outer Shroud Contacts
Number of Positions：220
Pitch：0.020" (0.50mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Ground Plate, Solder Retention
Contact Finish：Gold
Contact Finish Thickness：8.00µin (0.203µm)
Mated Stacking Heights：8mm
Height Above Board：0.293" (7.45mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 2357798-4

2357798-4
