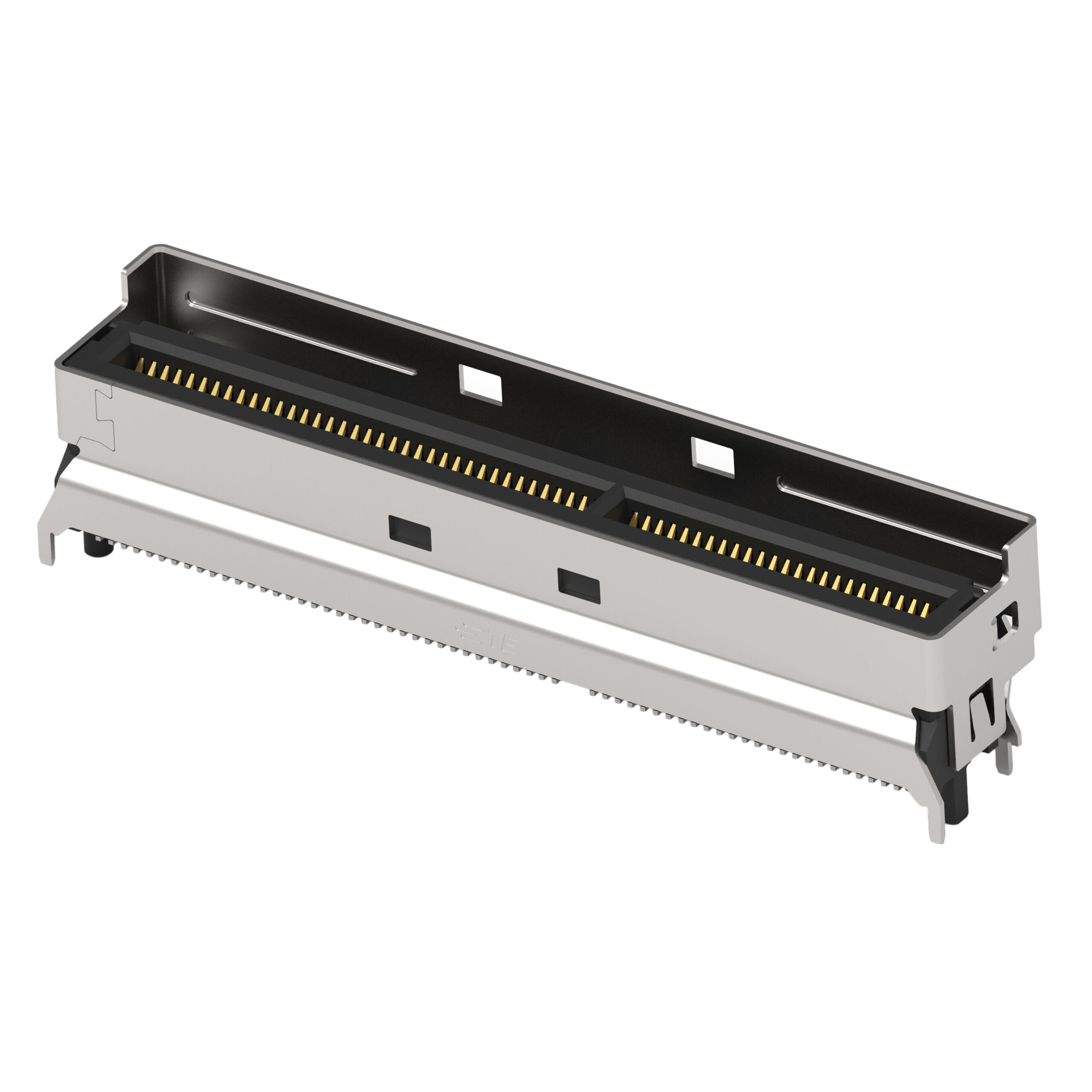

2360189-5 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is MCIO VERTICAL, 16X RECEPTACLE. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2360189-5
- Description：MCIO VERTICAL, 16X RECEPTACLE
- Series：Mini Cool Edge 0.60mm
- Mfr：TE Connectivity AMP Connectors
- Package：Tape & Reel (TR),Cut Tape (CT)
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：37; 25
- Number of Positions：124
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.024" (0.60mm)
- Read Out：Dual
- Features：Board Guide, Pick and Place, Solder Retention
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 85°C
Edgeboard Connectors datasheet and documents for 2360189-5
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2360189-5 is a vertical MCIO receptacle connector. It features a 16x configuration, designed for high-density interconnect applications requiring robust signal transmission. The component is manufactured by TE Connectivity and falls under the MCIO series, providing a reliable interface solution for electronic systems.
Edgeboard Connectors Feature Summary
- Vertical receptacle design for board-to-board or cable-to-board mounting
- MCIO series construction ensuring standardized high-speed connectivity
- 16x multi-port configuration supporting complex signal routing
Edgeboard Connectors Applications
- High-density server backplanes
- Storage area network (SAN) infrastructure
- Enterprise networking equipment
Edgeboard Connectors Procurement Notes
Verify the specific mechanical dimensions and mating partner compatibility before procurement. Confirm that the vertical orientation aligns with the host board layout requirements. Ensure the supplier provides genuine TE Connectivity products to guarantee performance reliability and compliance with technical specifications.
Edgeboard Connectors Selection Notes
Select this component when a vertical MCIO receptacle is required for high-density signal paths. Consider the 16x port count for system architecture needs. Evaluate the vertical form factor against available board space constraints and mating connector types to ensure proper integration within the electronic assembly.
Edgeboard Connectors Part Context
This part belongs to the MCIO (Mini Card Input/Output) family from TE Connectivity. These connectors are engineered for demanding environments requiring high pin counts in compact footprints. The vertical style distinguishes it from horizontal variants, offering specific spatial advantages in chassis designs.
Edgeboard Connectors Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Do not assume cross-compatibility with other MCIO series components without verifying mechanical and electrical parameters.
