2360547-5

Headers, Male Pins Overview

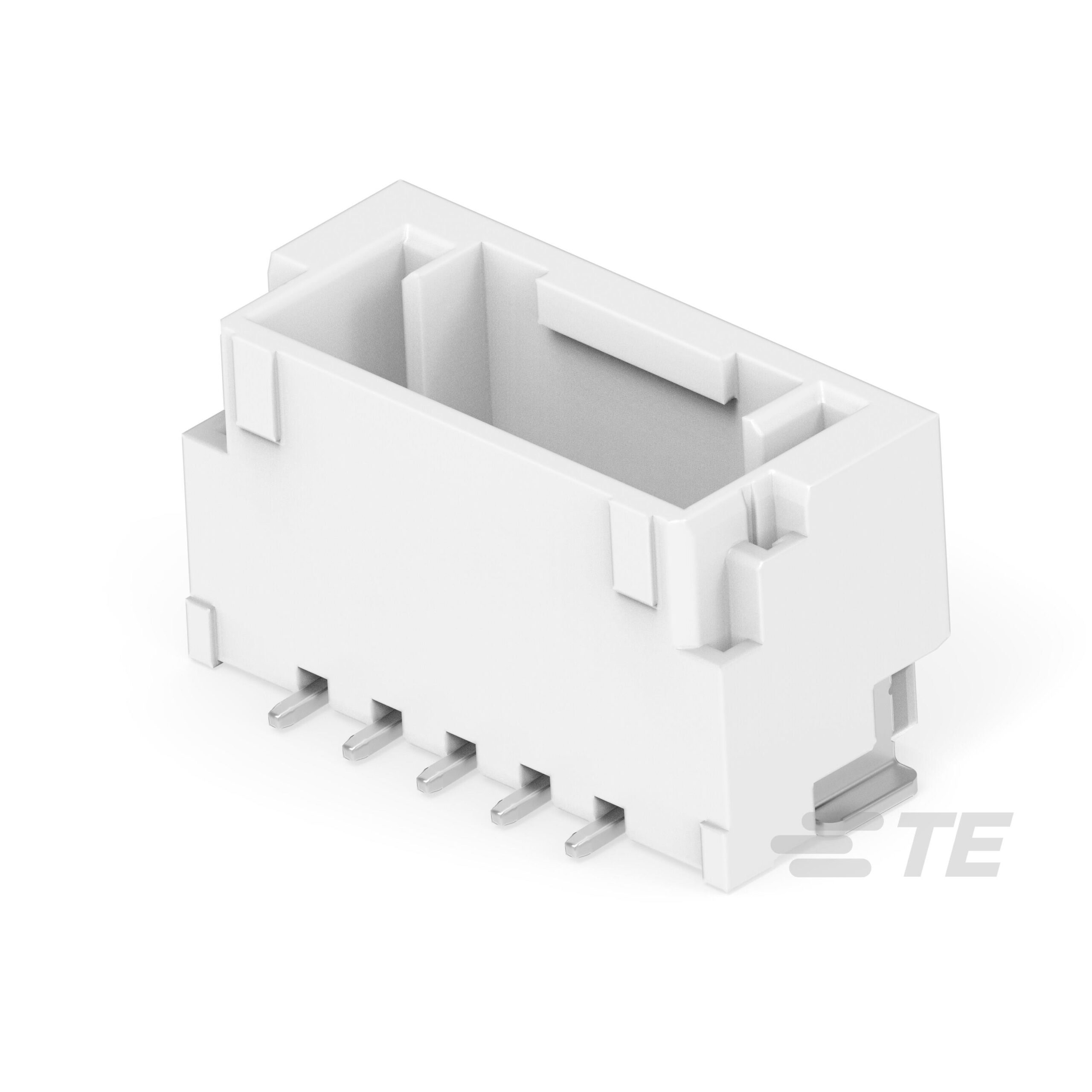

TE Connectivity AMP Connectors part number 2360547-5 is a connector header from the GRACE INERTIA 1.5 series, featuring a 5-position configuration with a 1.5 mm (0.059 in) pitch. Designed for surface mount installation, it utilizes straight solder pin termination and male pin contacts with tin plating. The housing is constructed from natural nylon, rated for UL 94 V-0 flammability. It supports signal applications within an operating temperature range of -40°C to +105°C, with a voltage rating of 50 VAC and a current rating of 2 A.

Headers, Male Pins Feature Summary

• Surface mount mounting style for automated PCB assembly
• Straight orientation with single row configuration
• Tin-plated brass contacts for reliable signal transmission
• Natural nylon insulation housing with UL 94 V-0 rating

Headers, Male Pins Applications

• Signal interconnection in electronic assemblies
• Board-to-board or board-to-wire connections
• Industrial control systems requiring compact headers
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify that the specific suffix matches the required reel packaging quantity, as standard factory quantities may vary. Confirm RoHS compliance status against the latest manufacturer documentation, as regulatory updates can occur. Ensure the surface mount footprint aligns with your PCB design constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount header is required for signal lines. The 1.5 mm pitch allows for dense circuit layouts compared to larger spacing options. Consider the 2 A current rating and 50 VAC limit to ensure compatibility with the target circuit's electrical requirements and thermal environment.

Headers, Male Pins Part Context

This component belongs to the GRACE INERTIA 1.5 series by TE Connectivity AMP Connectors. This family focuses on high-density interconnect solutions suitable for modern electronics manufacturing. The 5-position variant provides a compact interface option within the broader lineup of available positions and configurations.

Headers, Male Pins Replacement Considerations

The document references part number 2360547-7 as a related item within the same series, differing primarily in position count. Verify mechanical footprint compatibility and electrical ratings before substituting with other headers from the GRACE INERTIA 1.5 family.
