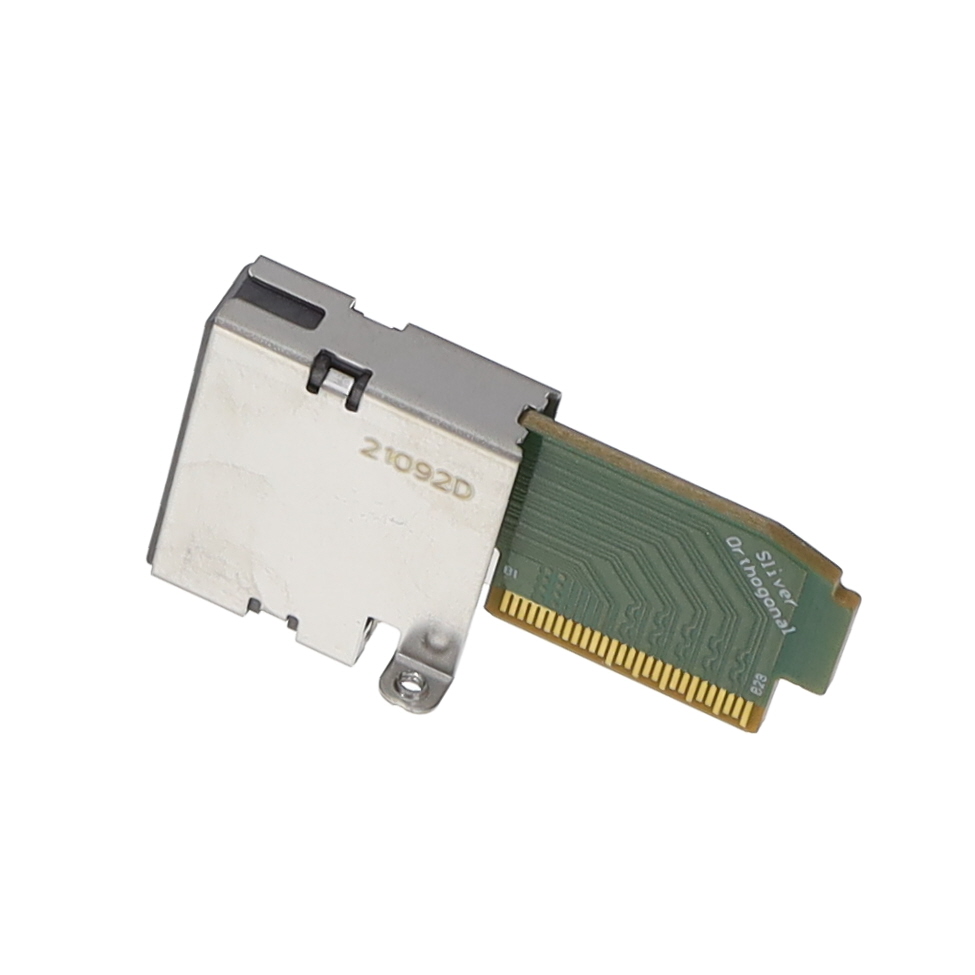

2360871-2 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is 56 POSITION SLIVER ORTHOGONAL ED. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2360871-2
- Description：56 POSITION SLIVER ORTHOGONAL ED
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：-
- Gender：-
- Number of Positions/Bay/Row：-
- Number of Positions：56
- Card Thickness：-
- Number of Rows：-
- Pitch：-
- Read Out：-
- Features：-
- Mounting Type：-
- Termination：-
- Contact Material：-
- Contact Finish：-
- Contact Finish Thickness：-
- Contact Type：-
- Color：-
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 2360871-2
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2360871-2 is a card edge connector designed for orthogonal daughter board applications. It features a receptacle type with 56 positions arranged in a single row. The connector is constructed for right-angle mounting, facilitating space-efficient PCB layouts. It utilizes a silver contact plating to ensure reliable signal transmission and durability. The component is packaged in trays for automated assembly processes.
Edgeboard Connectors Feature Summary
- Orthogonal design for daughter board interconnection
- Right-angle mounting configuration
- Silver-plated contacts for conductivity
Edgeboard Connectors Applications
- Server backplane connections
- High-density I/O modules
- Storage expansion cards
Edgeboard Connectors Procurement Notes
Verify the specific packaging quantity per tray when placing orders, as this affects handling and storage requirements. Confirm that the right-angle orientation matches the mechanical constraints of the host PCB. Ensure compatibility with the target daughter board thickness and edge profile specifications before finalizing procurement.
Edgeboard Connectors Selection Notes
Select this component when an orthogonal interface is required for high-pin-count applications. The 56-position count supports substantial data throughput needs. Consider the right-angle form factor if vertical clearance is limited but horizontal board space allows for perpendicular insertion relative to the mating connector.
Edgeboard Connectors Part Context
This part belongs to the TE Connectivity AMP Connectors portfolio, specifically within the card edge connector category. It is engineered for robust industrial and computing environments where reliable high-speed data transfer is critical. The orthogonal style distinguishes it from parallel mating connectors.
Edgeboard Connectors Replacement Considerations
Direct substitutes must match the 56-position count, orthogonal orientation, and right-angle mounting style. Verify that alternative parts support the same PCB thickness and offer comparable contact plating specifications to maintain electrical performance integrity.
