2362375-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is PCIE GEN4, 36POS ,G/F ,DIP ,2.3M. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2362375-1
- Description：PCIE GEN4, 36POS ,G/F ,DIP ,2.3M
- Series：*
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：-
- Gender：-
- Number of Positions/Bay/Row：-
- Number of Positions：-
- Card Thickness：-
- Number of Rows：-
- Pitch：-
- Read Out：-
- Features：-
- Mounting Type：-
- Termination：-
- Contact Material：-
- Contact Finish：-
- Contact Finish Thickness：-
- Contact Type：-
- Color：-
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 2362375-1
Edgeboard Connectors Overview

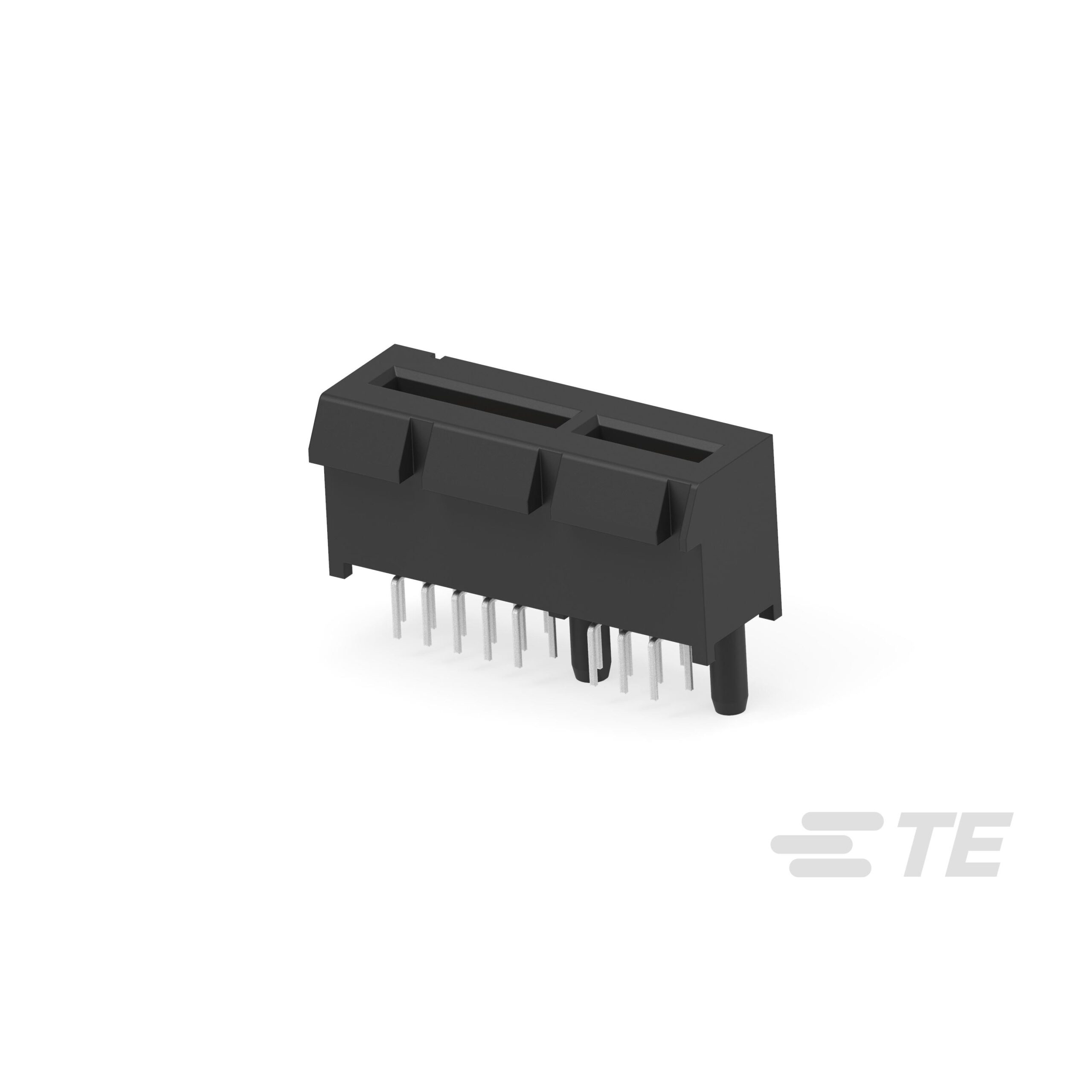

The 2362375-1 is a 36-position female card edge connector from the TE Connectivity AMP Connectors series, designed for PCI Express applications. It features a 1 mm centerline pitch and vertical board-to-board mounting style. The connector is black with a height of 11.25 mm and width of 8.8 mm. It utilizes gold-plated contacts for signal transmission.
Edgeboard Connectors Feature Summary
- Designed for high-speed data transmission in computing applications
- Vertical board-to-board connection style
- Gold-plated contact surfaces for reliable signal integrity
Edgeboard Connectors Applications
- PCI Express card edge connections
- High-speed computing hardware
- Server and storage system backplanes
Edgeboard Connectors Procurement Notes
Verify the specific contact plating thickness and tail length requirements against your PCB design specifications. Confirm that the 1 mm pitch aligns with your card edge geometry. Ensure the vertical mounting orientation matches your assembly constraints before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a 36-position vertical interface is required for PCI Express Gen 4 or similar high-speed signals. Consider the 1 mm pitch constraint and ensure compatibility with standard card edge thicknesses. Evaluate the need for gold plating versus alternative finishes based on environmental conditions and cycle life requirements.
Edgeboard Connectors Part Context
This part belongs to the TE Connectivity AMP Connectors portfolio, which provides interconnect solutions for demanding environments. The series includes various configurations for data, power, and signal transmission, supporting industries such as telecommunications, industrial automation, and consumer electronics through robust engineering.
Edgeboard Connectors Replacement Considerations
Check for direct substitutes like 1-2362375-1 or 2-2362375-1 if different contact configurations are needed. Verify pin count and pitch compatibility with existing PCB layouts before swapping components.
