Product Detailed Parameters
- Description：CAP FEEDTHRU 1000PF 500V AXIAL
- Series：2404
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：500V
- Current：20 A
- Operating Temperature：-55°C ~ 85°C
- Mounting Type：-
- Package / Case：Axial - Threaded Terminals
- Size / Dimension：0.227" Dia x 0.375" L (5.77mm x 9.53mm)
- Capacitance：1000 pF
- Tolerance：0%, +100%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：20dB @ 100MHz
- Temperature Coefficient：X5U
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

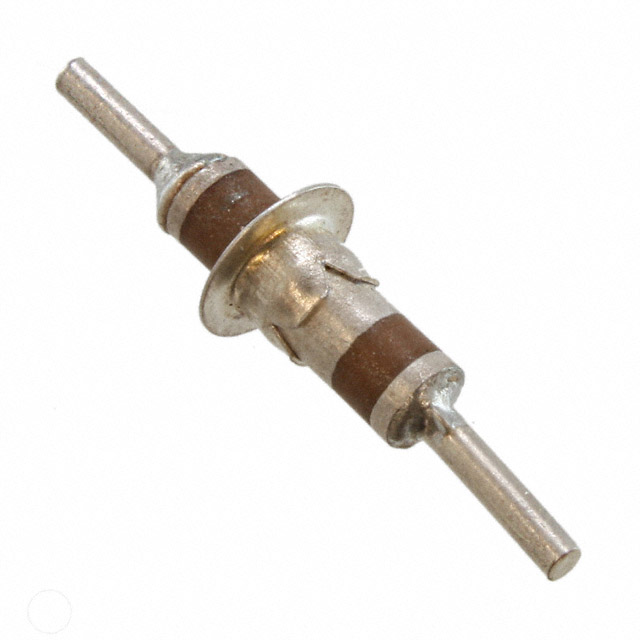

The 2404-000-X5U0-102PLF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. This component features a ceramic disc capacitor with a capacitance of 1000 pF and a voltage rating of 500 Volts. It utilizes X5U dielectric material, providing a capacitance tolerance of ±20%. The device operates within a temperature range of -55°C to +85°C. It employs an axial radial lead configuration with threaded terminals for mounting.
Feature Summary
- Provides effective electromagnetic interference suppression through feedthrough architecture
- Utilizes X5U ceramic dielectric for stable performance across specified temperature ranges
- Features threaded terminal design for secure mechanical integration
Applications
- Electronic equipment requiring EMI/RFI filtering
- Power supply input stages
- Signal line protection in sensitive circuits
Procurement Notes
Verify the specific manufacturer part number against official Tusonix or CTS documentation to ensure compatibility. Confirm that the axial threaded terminal style matches your chassis requirements. Check for any RoHS compliance details in the latest datasheet before finalizing procurement decisions.
Selection Notes
Select this component when high-voltage DC filtering is required in a compact axial form factor. The X5U dielectric offers suitable stability for general-purpose applications. Ensure the 500V rating exceeds the maximum circuit voltage and consider the thermal environment limits of -55°C to +85°C during design.
Part Context
This part belongs to the Tusonix family of EMI/RFI components. It is designed as a feedthrough capacitor to attenuate noise on power and signal lines. The product line emphasizes robust construction for industrial and commercial electronic environments.
Replacement Considerations
Consult official Tusonix substitution guides for verified equivalents. Generic replacements may not match the specific axial threaded terminal geometry or X5U dielectric characteristics.
