Product Detailed Parameters
- Description：CAP FEEDTHRU 1000PF 500V AXIAL
- Series：2404
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：500V
- Current：20 A
- Operating Temperature：-55°C ~ 85°C
- Mounting Type：-
- Package / Case：Axial - No Leads
- Size / Dimension：0.227" Dia x 0.380" L (5.77mm x 9.65mm)
- Capacitance：1000 pF
- Tolerance：0%, +100%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：20dB @ 100MHz
- Temperature Coefficient：X5U
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

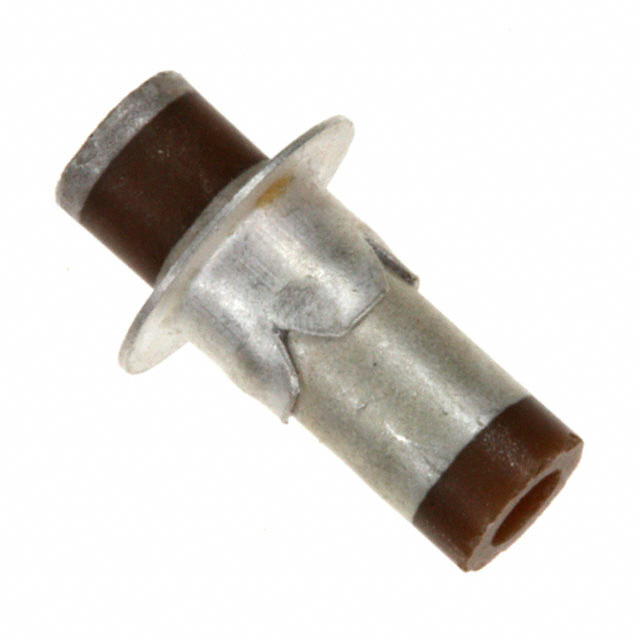

The 2404-014-X5U0-102PLF is a feed-through capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 1000 pF with a tolerance range of 0% to +100%. The component has a rated voltage of 500 V and utilizes X5U dielectric material. It supports an axial configuration with no leads and operates within a temperature range of -55°C to +85°C.
Feature Summary
- Provides electromagnetic interference suppression through feed-through architecture
- Utilizes X5U ceramic dielectric for stable performance across operating temperatures
- Features an axial design without leads for direct panel mounting integration
Applications
- Electromagnetic interference filtering in electronic circuits
- Panel mount applications requiring leadless axial components
- High-voltage signal conditioning environments
Procurement Notes
Verify the specific tolerance requirements against the 0% to +100% specification before procurement. Confirm that the axial, leadless form factor aligns with the intended panel mounting design. Ensure the system voltage does not exceed the 500 V rating. Check for RoHS compliance status if required by project specifications.
Selection Notes
Select this component when a leadless axial feed-through capacitor is required for panel mounting. The X5U dielectric offers suitable stability for general-purpose filtering. Consider the wide tolerance range when designing precise timing or coupling circuits. Verify physical dimensions against available panel space.
Part Context
This part belongs to the 2404 series of feed-through capacitors from Tusonix. These components are designed for high-reliability applications where compact size and effective noise suppression are critical. The series typically includes various capacitance and voltage ratings to suit different circuit requirements.
Replacement Considerations
Cross-reference with other axial feed-through capacitors having similar capacitance and voltage ratings. Ensure substitute parts support the same leadless mounting style and temperature range.
