2425-001-X5U0-101AALF

$27.12

Description：CAP FEEDTHRU 200V AXIAL
Series：2425
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:77f84eed0019 Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 200V AXIAL
Series：2425
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：200V
Current：20 A
Operating Temperature：-55°C ~ 85°C
Mounting Type：-
Package / Case：Axial, Bushing, 1 Turret Lead
Size / Dimension：0.187" Dia x 0.359" L (4.75mm x 9.12mm)
Capacitance：-
Tolerance：-
DC Resistance (DCR) (Max)：-
Insertion Loss：-
Temperature Coefficient：X5U
Ratings：-
Height (Max)：-
Thread Size：8-32

Download product information

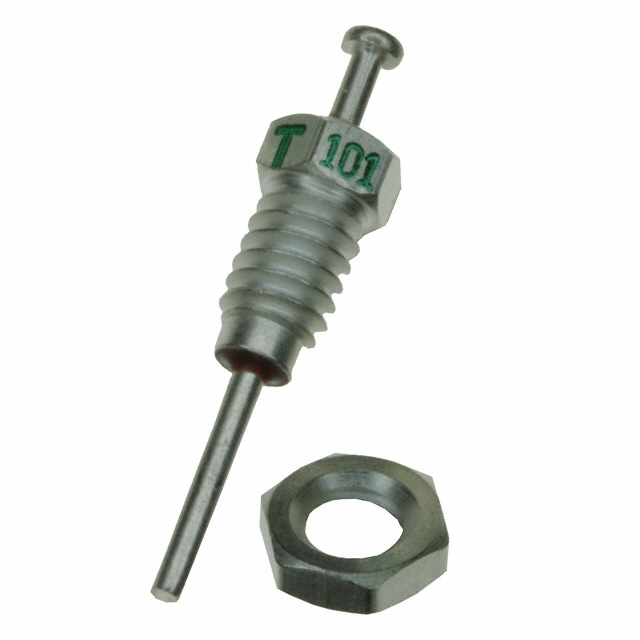

2425-001-X5U0-101AALF

Overview

The Tusonix 2425-001-X5U0-101AALF is an EMI feedthrough filter with a capacitance of 100 pF and a voltage rating of 200 V. It operates within a temperature range of -55°C to +125°C. The component features axial bushing leads and measures 0.187 inches in diameter, 0.359 inches in height, and 0.898 inches in length.

Feature Summary

Provides electromagnetic interference suppression through high-frequency signal attenuation
Utilizes axial bushing lead configuration for secure panel mounting
Maintains stable electrical performance across extended industrial temperature ranges

Applications

Power supply input filtering
Signal line noise reduction
Electronic equipment chassis grounding

Procurement Notes

Verify the specific capacitance tolerance and lead termination style against project requirements before ordering. Confirm that the 200 VDC rating aligns with the system's maximum operating voltage. Ensure the physical dimensions fit the designated panel cutout and mounting hardware specifications.

Selection Notes

Select this component when compact axial mounting is required for EMI suppression. The X5U dielectric offers stable capacitance characteristics suitable for general-purpose filtering applications. Consider the 20 A current handling capability if used in power line applications.

Part Context

This part belongs to the 2425 series of tubular feedthrough capacitors manufactured by Tusonix, a subsidiary of CTS Electronic Components. The series is designed for robust EMI/RFI filtering in harsh environments, offering reliable performance in aerospace, military, and industrial control systems.

Replacement Considerations

Cross-reference with other 2425 series variants or equivalent feedthrough capacitors from manufacturers like Vishay or Johanson Technology. Verify dimensional compatibility and electrical ratings before substitution.
