Product Detailed Parameters
- Description：CAP FEEDTHRU 200V AXIAL
- Series：2425
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：20 A
- Operating Temperature：-55°C ~ 85°C
- Mounting Type：-
- Package / Case：Axial, Bushing, 1 Turret Lead
- Size / Dimension：0.187" Dia x 0.359" L (4.75mm x 9.12mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：-
- Temperature Coefficient：X5U
- Ratings：-
- Height (Max)：-
- Thread Size：8-32
Download product information
Overview

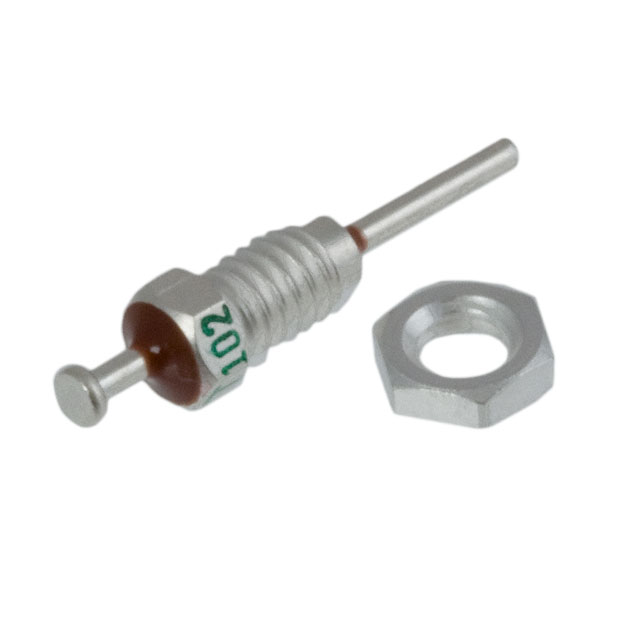

The 2425-001-X5U0-102AALF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. This component features a capacitance of 1000 pF and a voltage rating of 200 V. It operates within a temperature range from -55 °C to +125 °C. The device utilizes an axial bushing configuration with a single turret lead for mounting. Physical dimensions include a diameter of 0.187 inches. The product is supplied in bulk packaging.
Feature Summary
- Provides electromagnetic interference suppression through integrated feedthrough filtering capabilities
- Utilizes axial bushing construction with a single turret lead for secure panel mounting
- Designed for reliable operation across extended industrial temperature ranges
Applications
- Electronic equipment requiring EMI/RFI noise reduction
- Power supply input/output filtering stages
- Signal line protection in sensitive instrumentation
Procurement Notes
Verify the specific capacitance value against project requirements, as sources indicate both 1000 pF and 1500 pF variants within the same series. Confirm the 200 V rating aligns with system voltage constraints. Ensure the axial bushing form factor fits the mechanical enclosure design. Check RoHS compliance status directly with the manufacturer or authorized distributor documentation before finalizing procurement decisions.
Selection Notes
Select this component when a compact, high-reliability feedthrough capacitor is needed for EMI suppression. The 200 V rating suits moderate voltage applications. The axial bushing style requires panel penetration mounting. Compare against other 2425 series parts if different capacitance values like 1500 pF are required. Ensure the operating temperature range meets environmental specifications.
Part Context
This part belongs to the 2425 series of EMI feedthrough filters produced by Tusonix. The series includes various capacitance values and voltage ratings. These components are designed for robust performance in demanding environments. The axial bushing design allows for direct panel mounting, simplifying integration into chassis-based systems.
Replacement Considerations
Check for exact matches in the 2425 series with identical 1000 pF capacitance and 200 V rating. Verify physical dimensions and lead configuration compatibility. Consult manufacturer cross-reference lists for approved substitutes.
