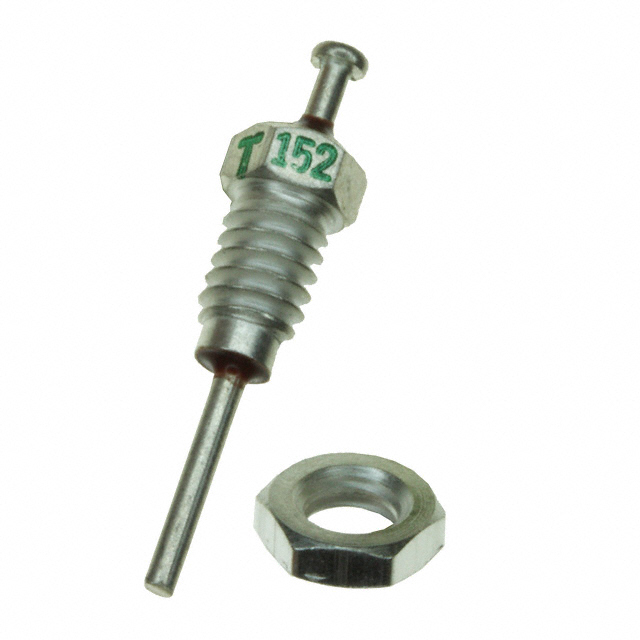

2425-001-X5U0-152AALF

Description：CAP FEEDTHRU 200V AXIAL
Series：2425
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:1b4adc5f6546 Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 200V AXIAL
Series：2425
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：200V
Current：20 A
Operating Temperature：-55°C ~ 85°C
Mounting Type：-
Package / Case：Axial, Bushing, 1 Turret Lead
Size / Dimension：0.187" Dia x 0.359" L (4.75mm x 9.12mm)
Capacitance：-
Tolerance：-
DC Resistance (DCR) (Max)：-
Insertion Loss：-
Temperature Coefficient：X5U
Ratings：-
Height (Max)：-
Thread Size：8-32

Download product information

2425-001-X5U0-152AALF

Overview

The Tusonix 2425-001-X5U0-152AALF is an EMI feedthrough filter with a capacitance of 1.5 nF and a voltage rating of 100 V. It operates within a temperature range of -55 °C to +125 °C. The component features an axial bushing design with dimensions of 0.187 inches in diameter and 0.359 inches in length.

Feature Summary

Provides electromagnetic interference suppression through high-capacitance feedthrough technology.
Utilizes a robust axial bushing construction for secure panel mounting.

Applications

Electronic equipment requiring EMI filtering
Power supply input stages
Signal line protection

Procurement Notes

Verify the specific voltage rating and capacitance tolerance against project requirements before procurement. Confirm that the axial bushing mounting style aligns with the mechanical design constraints. Ensure the operating temperature range meets the environmental conditions of the intended application site.

Selection Notes

Select this component when a compact, high-capacitance feedthrough solution is needed for low-voltage applications. The 100 V rating suits specific signal or low-power lines. Consider the physical dimensions and threading specifications to ensure compatibility with existing chassis or panel cutouts during the design phase.

Part Context

This part belongs to the 2425 series of EMI feedthrough filters manufactured by Tusonix, a subsidiary of CTS Electronic Components. The series is designed for effective noise attenuation in electronic systems using a standard axial bushing form factor.

Replacement Considerations

Direct substitutes include other 1.5 nF, 100 V axial feedthrough capacitors from the same manufacturer series. Verify dimensional compatibility and mounting thread specifications when considering alternative sources.
