2425-001-X5W0-502AALF

Overview

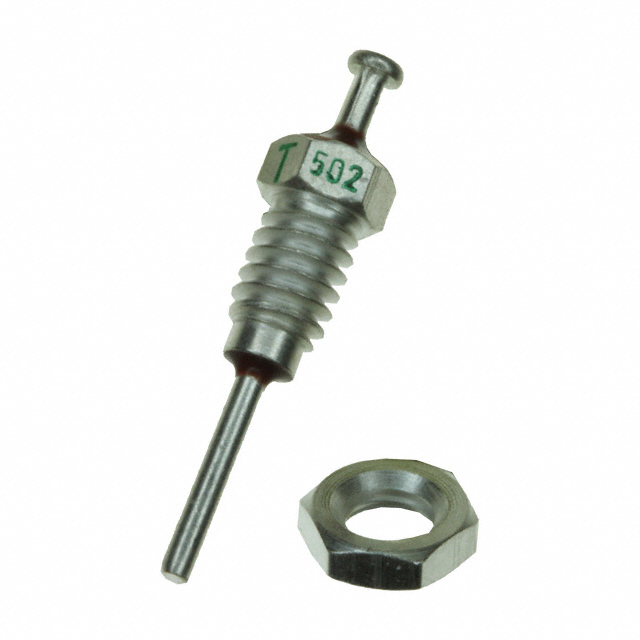

The Tusonix 2425-001-X5W0-502AALF is an EMI feedthrough filter with a capacitance of 5000 pF and a rated voltage of 200 V. It features an axial leaded design with dimensions of 0.187 inches in diameter and 0.359 inches in length. The component operates within a temperature range of -55°C to +125°C and is packaged in bulk.

Feature Summary

• Provides electromagnetic interference suppression through high-capacitance feedthrough architecture
• Axial leaded configuration facilitates direct panel or chassis mounting
• Constructed for reliable operation across extended industrial temperature ranges

Applications

• Power supply input filtering
• Electronic equipment chassis grounding
• Signal line noise suppression

Procurement Notes

Verify the specific capacitance value against official datasheets, as sources vary between 1500 pF and 5000 pF for similar part numbers. Confirm the voltage rating and temperature range requirements match your system specifications before procurement. Ensure the axial lead style fits your mechanical assembly constraints.

Selection Notes

Select this component when high capacitance is required for low-frequency noise attenuation in power lines. The axial form factor suits applications requiring robust mechanical mounting. Verify that the 200V rating meets the circuit's peak voltage demands and that the operating temperature range covers the environmental conditions.

Part Context

This component belongs to the 2425 series of EMI feedthrough filters manufactured by Tusonix, a subsidiary of CTS Electronic Components. These filters are designed for high-performance noise suppression in sensitive electronic systems, offering a compact solution for integrating capacitive filtering directly into grounded panels.

Replacement Considerations

Check for exact matches in the 2425 series with identical capacitance and voltage ratings. Verify mechanical dimensions and lead styles to ensure compatibility with existing mounting holes and PCB layouts.
