2425-018-X7R0-101MLF

Overview

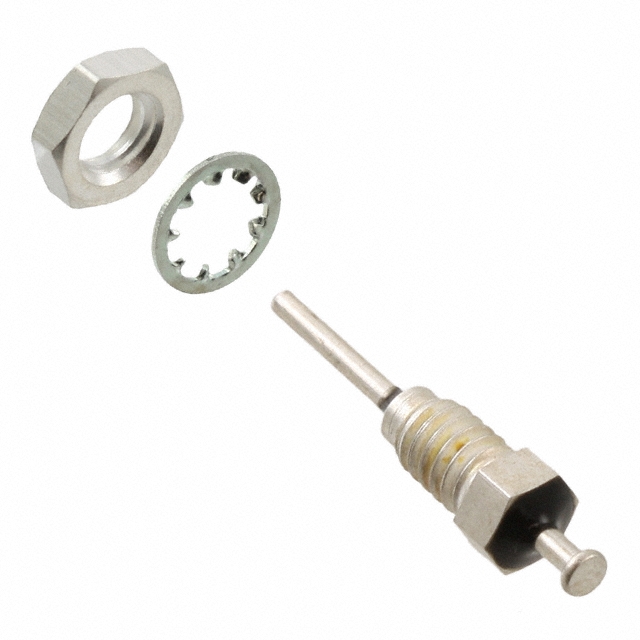

The Tusonix 2425-018-X7R0-101MLF is an axial feedthrough capacitor designed for electromagnetic interference suppression. It features a capacitance of 100 pF with a tolerance of ±20%. The component operates at a DC rated voltage of 100V, with a maximum rating of 200Vdc at 85°C. It utilizes X7R dielectric material and supports a continuous current of 20 A. The physical package consists of an axial bushing configuration with one turret lead. Operating temperatures range from -55°C to +125°C.

Feature Summary

• Provides effective electromagnetic interference filtering through feedthrough capacitor architecture
• Supports high continuous current handling capabilities suitable for power line applications
• Features robust thermal stability across a wide operating temperature range

Applications

• Electromagnetic interference suppression in electronic circuits
• Power line filtering for axial bushing installations
• High-current signal path noise reduction

Procurement Notes

Verify the specific voltage derating requirements against your application's peak operating conditions, as the component has distinct ratings for standard operation versus elevated temperatures. Confirm that the axial bushing mounting style aligns with your chassis or panel design constraints. Ensure the 20 A current capacity meets the maximum load expectations without exceeding thermal limits defined in the official datasheet.

Selection Notes

Select this component when high-frequency noise attenuation is required on lines carrying significant current. The X7R dielectric offers stable capacitance characteristics over varying temperatures. Consider the axial bushing form factor if space allows for panel penetration mounting rather than surface mount alternatives. Validate that the 100 pF value provides sufficient impedance for your target frequency band.

Part Context

This part belongs to the Tusonix family of EMI feedthrough filters manufactured by CTS Electronic Components. These components are engineered for reliable noise suppression in demanding environments. The 2425 series specifically denotes axial feedthrough capacitors designed for direct wire-to-wire or wire-to-ground filtering applications where compact size and high current handling are critical.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility carefully if considering alternative manufacturers, ensuring equivalent capacitance, voltage ratings, current handling, and mechanical dimensions match the original specifications.
