2443-007-X5S0-102MLF

Overview

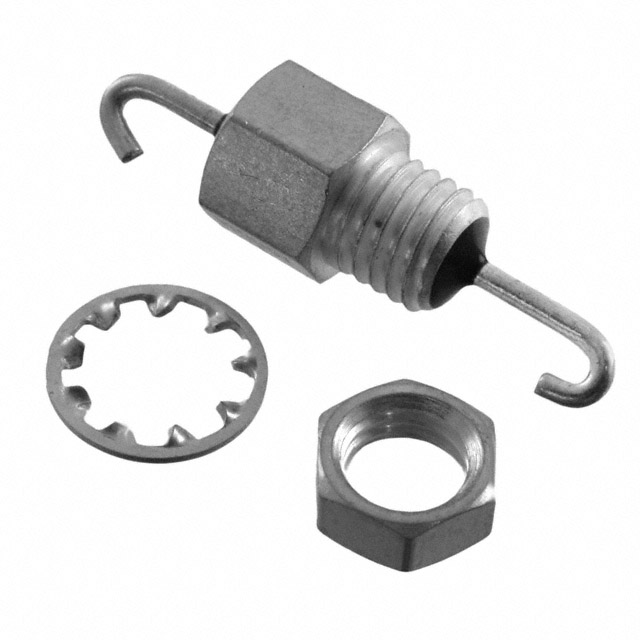

The Tusonix 2443-007-X5S0-102MLF is an EMI feedthrough filter with a capacitance of 1 nF and a rated voltage of 500 V. It features a 20% tolerance and operates within a temperature range of -55°C to +85°C. The component utilizes a 1/4-28 UNF-2A thread size for mounting.

Feature Summary

• Provides electromagnetic interference suppression through axial feedthrough capacitor design
• Utilizes threaded mounting interface for secure mechanical integration

Applications

• Electromagnetic interference filtering in electronic circuits
• Power supply line conditioning
• Signal integrity protection in sensitive equipment

Procurement Notes

Verify the specific ordering suffix X5S0-102MLF against official Tusonix documentation to confirm exact electrical characteristics and physical dimensions. Ensure compatibility with existing panel cutouts requiring a 1/4-28 UNF-2A thread. Confirm that the 500V rating and 1nF capacitance meet the system requirements before procurement.

Selection Notes

Select this component when high-voltage isolation and EMI suppression are required in a compact axial form factor. The 500V rating distinguishes it from lower-voltage alternatives like the 4300 series. Verify that the operating temperature range of -55°C to +85°C aligns with the environmental conditions of the intended application.

Part Context

This part belongs to the Tusonix 2443 series of feedthrough capacitors, manufactured by CTS Corporation. These components are designed for robust EMI filtering in demanding environments. The series offers various capacitance and voltage ratings to suit different circuit protection needs.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult manufacturer cross-reference guides for potential equivalents.
