2443-007-X5W0-502ZLF

Overview

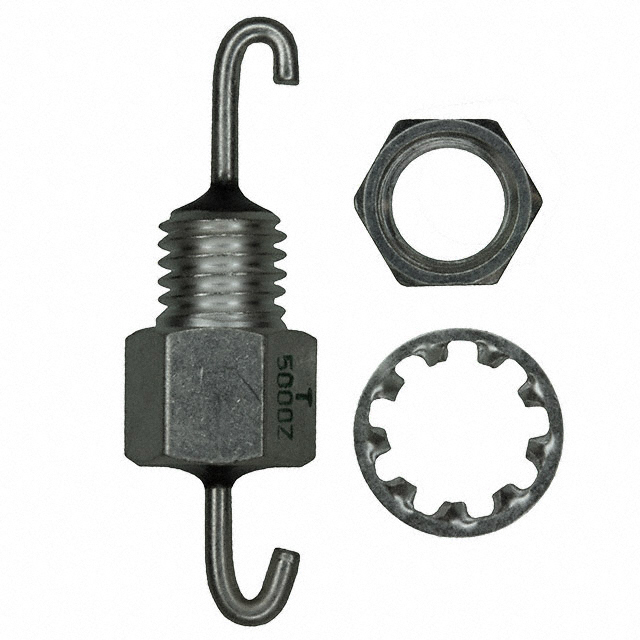

The 2443-007-X5W0-502ZLF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 5000 pF (5 nF) and a voltage rating of 50 V. The component utilizes X5W dielectric material, providing stable performance across its operating temperature range. It is housed in an axial package with hooked leads and a bushing configuration. The physical dimensions are 0.312 inches in diameter and 0.668 inches in length. This filter offers an insertion loss of 30 dB at 100 MHz.

Feature Summary

• Provides effective electromagnetic interference suppression through feedthrough capacitor design
• Utilizes X5W dielectric for consistent electrical characteristics
• Features axial mounting with hooked leads and bushing configuration

Applications

• Electromagnetic interference filtering in electronic circuits
• Signal conditioning in high-frequency applications
• Power supply noise reduction in sensitive equipment

Procurement Notes

Verify the specific dielectric code X5W and capacitance value 502 against official datasheets before procurement. Confirm that the hooked lead style and bushing dimensions match your panel cutout requirements. Ensure the 50 V rating meets your circuit's maximum operating voltage under all conditions. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Selection Notes

Select this component when a 5000 pF capacitance and 50 V rating are required for EMI suppression. The X5W dielectric is suitable for applications needing stable performance over temperature variations. Consider the axial bushing form factor if panel mounting is necessary. Compare insertion loss specifications against other filters if higher attenuation at specific frequencies is needed.

Part Context

This component belongs to the 2443 series of EMI feedthrough filters from Tusonix/CTS. The series includes various capacitance values and voltage ratings. The 2443-007 variant specifically denotes the case size and lead configuration within this family. Other parts in the series may differ in capacitance, voltage, or dielectric type.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with any alternative feedthrough capacitors based on capacitance, voltage, and mechanical dimensions.
