2443552-1

Overview

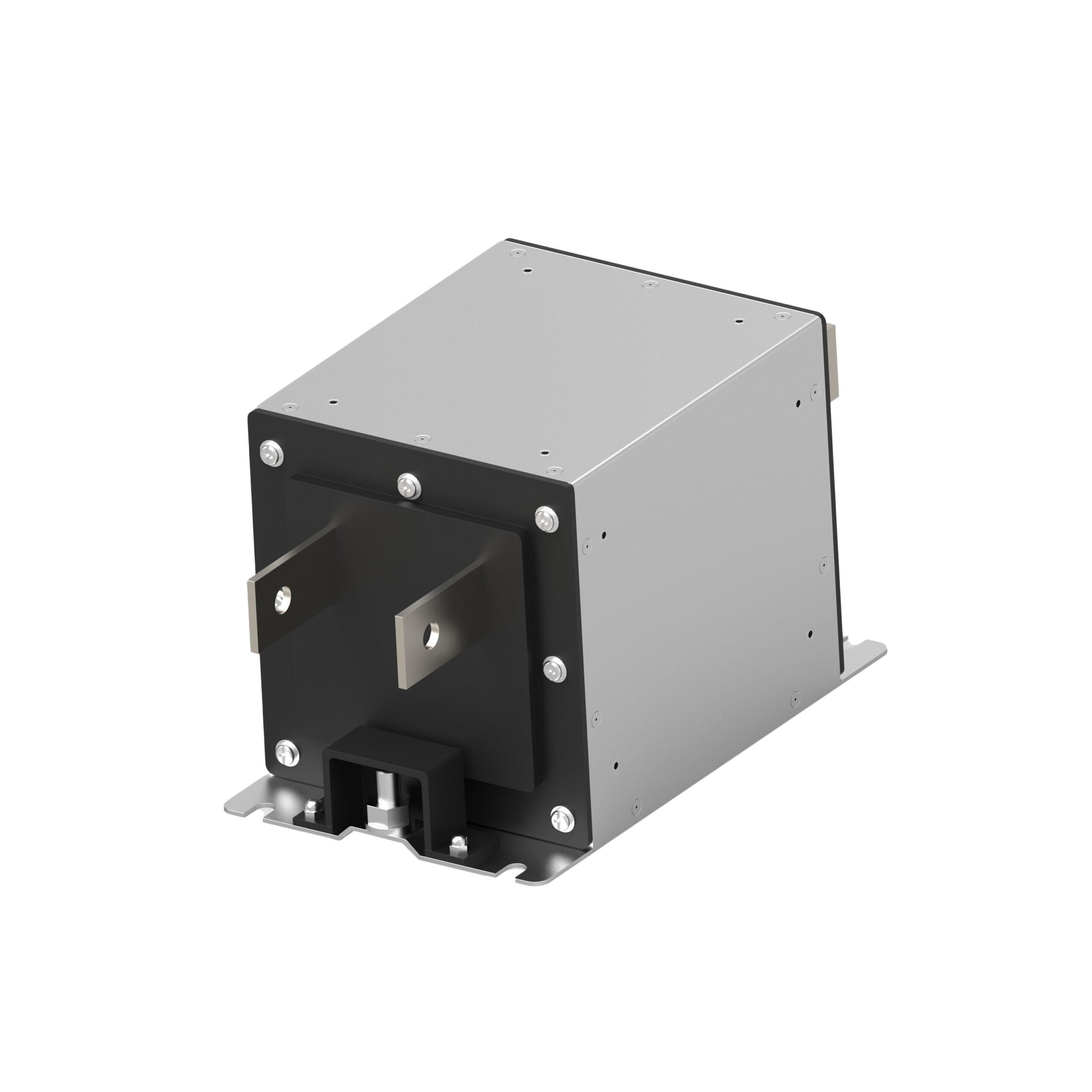

The TE Connectivity Corcom Filters model 2443552-1 is a high voltage DC EMI filter belonging to the EVX series. It is rated for 500 VDC and 150 A current. The component utilizes busbar termination and chassis mount installation. It features a two-stage design for effective attenuation in electric vehicle charging applications.

Feature Summary

• Two-stage architecture for enhanced noise suppression
• Designed for high power fast charger environments
• Busbar input and output connections

Applications

• Electric vehicle (EV) charging stations
• High power DC power conversion systems

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current availability status. Check for any superseded part numbers or lifecycle changes, as this component may be subject to obsolescence notices. Ensure compliance with RoHS and REACH requirements for your target market before procurement.

Selection Notes

Select this component when a 150 A rating at 500 VDC is required for DC EMI filtering. Consider the chassis mount style and busbar interface for integration into existing power architectures. Evaluate thermal management needs based on the specified operating temperature range of -40 C to +100 C.

Part Context

This filter is part of the Corcom EVX series, which targets high voltage DC applications. The series supports power levels ranging from 75kW to 2.4MW for fast chargers. The 2443552-1 variant specifically addresses the 150 A current requirement within this product family.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference electrical ratings and physical dimensions to ensure compatibility with existing mounting structures and circuit requirements.
