2443552-2

Overview

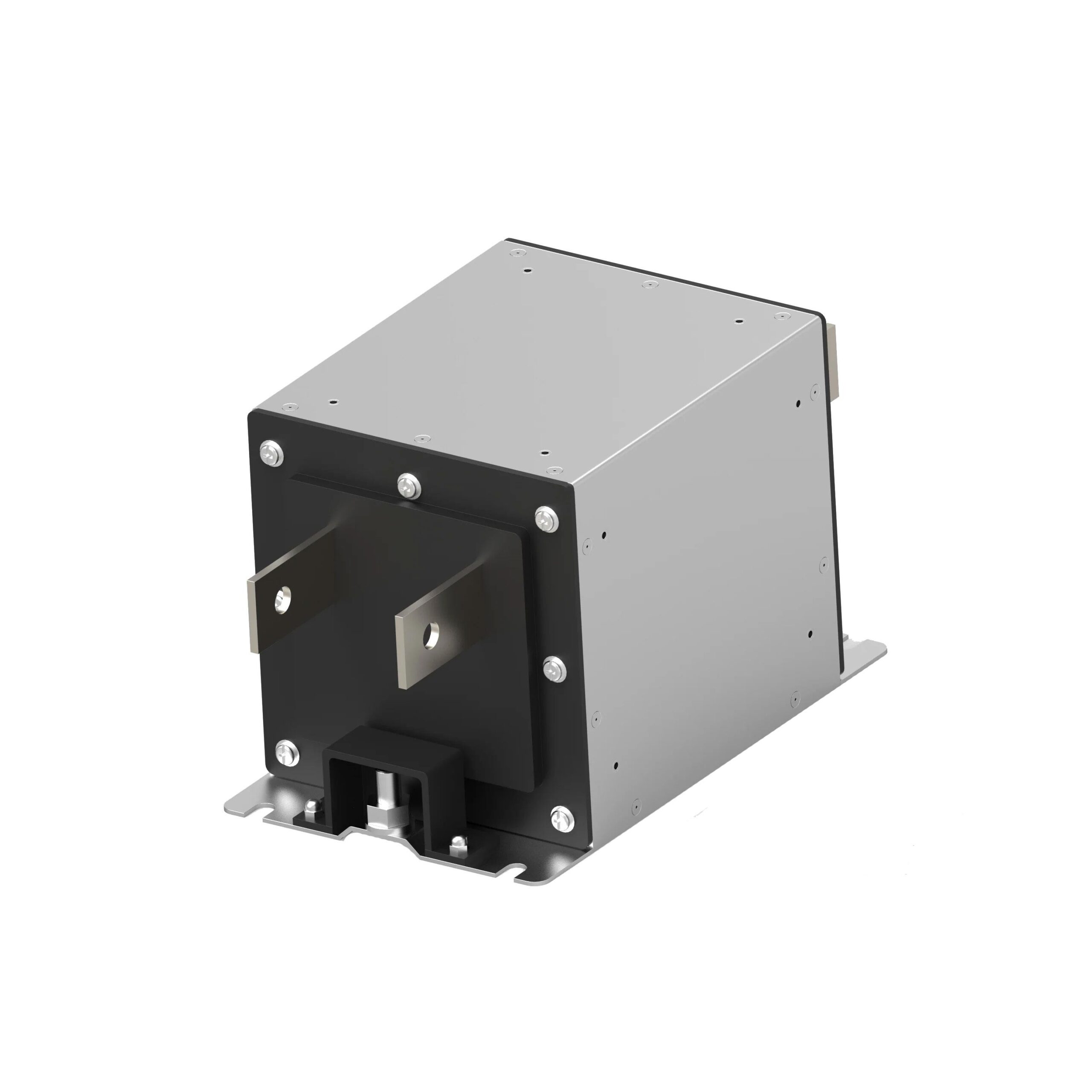

The TE Connectivity Corcom Filters model 2443552-2 is a DC EMI filter belonging to the EVX series. It features a chassis mount installation style with busbar termination. The component has a voltage rating of 500 VDC and a current rating of 150 A. Its capacitance is specified as 0.1 uF. The operating temperature range extends from -40 C to +100 C. Physical dimensions include a height of 128 mm, length of 200 mm, and width of 122 mm. The product is UL compliant.

Feature Summary

• Provides effective electromagnetic interference attenuation for direct current circuits
• Designed specifically for high voltage electric vehicle charging applications
• Utilizes a two-stage terminal post configuration for enhanced filtering performance

Applications

• Electric vehicle charging infrastructure
• Industrial power conversion systems
• High voltage DC power conditioning

Procurement Notes

Verify the specific part number against official manufacturer documentation before procurement. Confirm that the component meets all required electrical specifications for your application. Check for any end-of-life notices or obsolescence warnings associated with this specific model. Ensure compatibility with existing mounting hardware and busbar interfaces. Review updated datasheets for any recent changes in compliance or dimensional tolerances.

Selection Notes

Select this component when high current handling capability at 150 A is required for DC applications. Consider the physical dimensions and chassis mount style for enclosure integration. Evaluate the 500 VDC rating against system voltage requirements. Assess the need for busbar termination versus other connection methods. Verify thermal management capabilities within the specified operating temperature range.

Part Context

This filter is part of the EVX series from TE Connectivity Corcom Filters. The series focuses on high voltage DC filtering solutions. Other models in the series offer varying current ratings and configurations. The EVX series is designed to meet stringent electromagnetic compatibility standards. It serves critical roles in modern electrified transportation and industrial power systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer resources for potential cross-references. Ensure any replacement matches the original electrical and mechanical specifications exactly.
