2443552-4

Overview

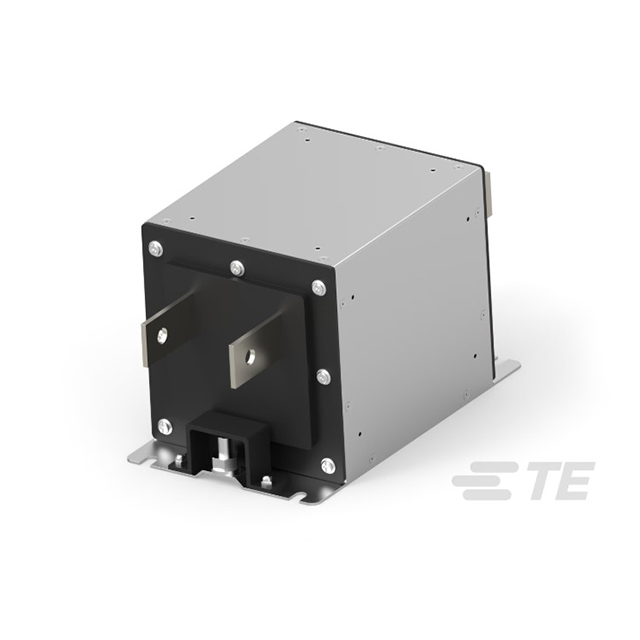

The 2443552-4 is an EVX series high voltage DC EMI filter manufactured by TE Connectivity Corcom Filters. It is designed for electric vehicle (EV) charging applications, providing effective EMI attenuation in high current environments. The component features a two-stage configuration and utilizes terminal post connections. Rated for 500V DC operation, it supports a maximum current of 1.6 kA. This robust power line filter ensures compliance with electromagnetic compatibility standards in demanding automotive and industrial settings.

Feature Summary

• Provides effective EMI attenuation for high current DC applications
• Designed specifically for electric vehicle charging infrastructure
• Features a two-stage filtering configuration for enhanced noise reduction

Applications

• Electric vehicle charging stations
• High voltage DC power distribution systems
• Industrial equipment requiring EMI suppression

Procurement Notes

Verify the exact part number against official TE Connectivity documentation to ensure correct specifications. Confirm that the 1.6 kA rating and 500V DC voltage align with your system requirements. Check for any recent product change notices or end-of-life announcements. Ensure compatibility with terminal post mounting styles. Validate regulatory certifications required for your specific market application.

Selection Notes

Select this component when high current DC filtering is required for EV charging systems. Consider the 1.6 kA current capacity and 500V DC rating as primary constraints. Evaluate the two-stage design benefits for noise reduction needs. Compare physical dimensions and terminal post connection types with existing board layouts. Ensure thermal management strategies accommodate the expected load conditions.

Part Context

This component belongs to the EVX series from TE Connectivity Corcom Filters, which specializes in high-performance power line filters. The series is engineered for demanding applications such as electric vehicles and renewable energy systems. It represents a solution for managing electromagnetic interference in high-power DC circuits, ensuring reliable operation in critical infrastructure.

Replacement Considerations

Public confirmed substitute: 2-2443552-4. Verify electrical ratings and mechanical fit before substitution.

FAQ

What is the maximum current rating for the 2443552-4?

The maximum current rating is 1.6 kA.

Is this filter suitable for AC applications?

No, it is rated for 500V DC operation and designed for DC EMI filtering.
