Product Detailed Parameters
- Description：LINE FLTR 500VDC 300A CHASS MNT
- Series：EVX
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：500V
- Voltage - Rated AC：-
- Current：300 A
- Frequency - Operating：DC
- Applications：Converter
- Approval Agency：UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

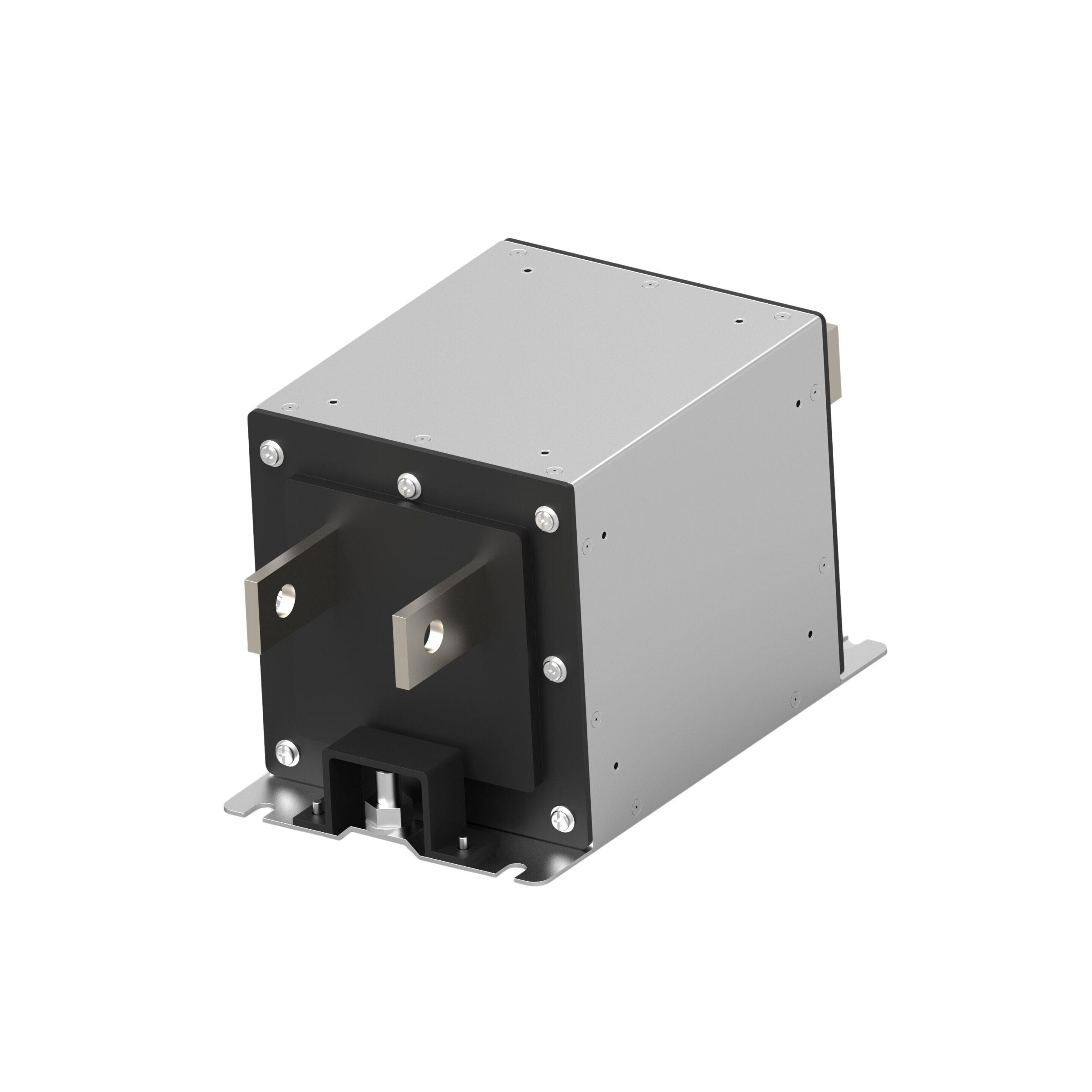

The TE Connectivity Corcom Filters model 2443552-5 is a high voltage DC EMI filter belonging to the EVX series. It is rated for 500 VDC and 300 A current. The component utilizes a two-stage terminal post configuration for effective electromagnetic interference attenuation. It features chassis mount installation with busbar termination. The unit operates within a temperature range of -40 C to +100 C. Physical dimensions include a length of 200 mm, width of 122 mm, and height of 128 mm. It includes 0.1 uF capacitance.
Feature Summary
- Provides effective EMI attenuation for electric vehicle charging applications
- Designed for high-power DC environments requiring robust filtering
- Features durable construction suitable for industrial use
Applications
- Electric vehicle (EV) charging systems
- High-power DC power conditioning
- Industrial electrical equipment requiring EMI suppression
Procurement Notes
Verify the exact part number against official manufacturer documentation before procurement. Confirm that the 500 VDC and 300 A ratings match your system requirements. Check for end-of-life status or obsolescence notices from TE Connectivity. Ensure compatibility with chassis mounting and busbar termination interfaces. Validate compliance certifications such as UL if required for your specific application region.
Selection Notes
Select this component when designing systems requiring high current handling up to 300 A at 500 VDC. Consider the physical dimensions of 200x122x128 mm for enclosure space planning. Evaluate the need for two-stage filtering capabilities in your circuit design. Ensure the operating temperature range of -40 C to +100 C aligns with your environmental conditions. Verify that busbar termination suits your connection infrastructure.
Part Context
This component is part of the EVX series from TE Connectivity Corcom Filters. The series specializes in high voltage DC EMI filters. These filters are engineered specifically for demanding applications like electric vehicle infrastructure. The EVX line emphasizes reliability and performance in conductive charging systems.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for direct replacements or cross-references.
