Product Detailed Parameters
- Description：LINE FLTR 500VDC 300A CHASS MNT
- Series：EVX
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：500V
- Voltage - Rated AC：-
- Current：300 A
- Frequency - Operating：DC
- Applications：Converter
- Approval Agency：UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

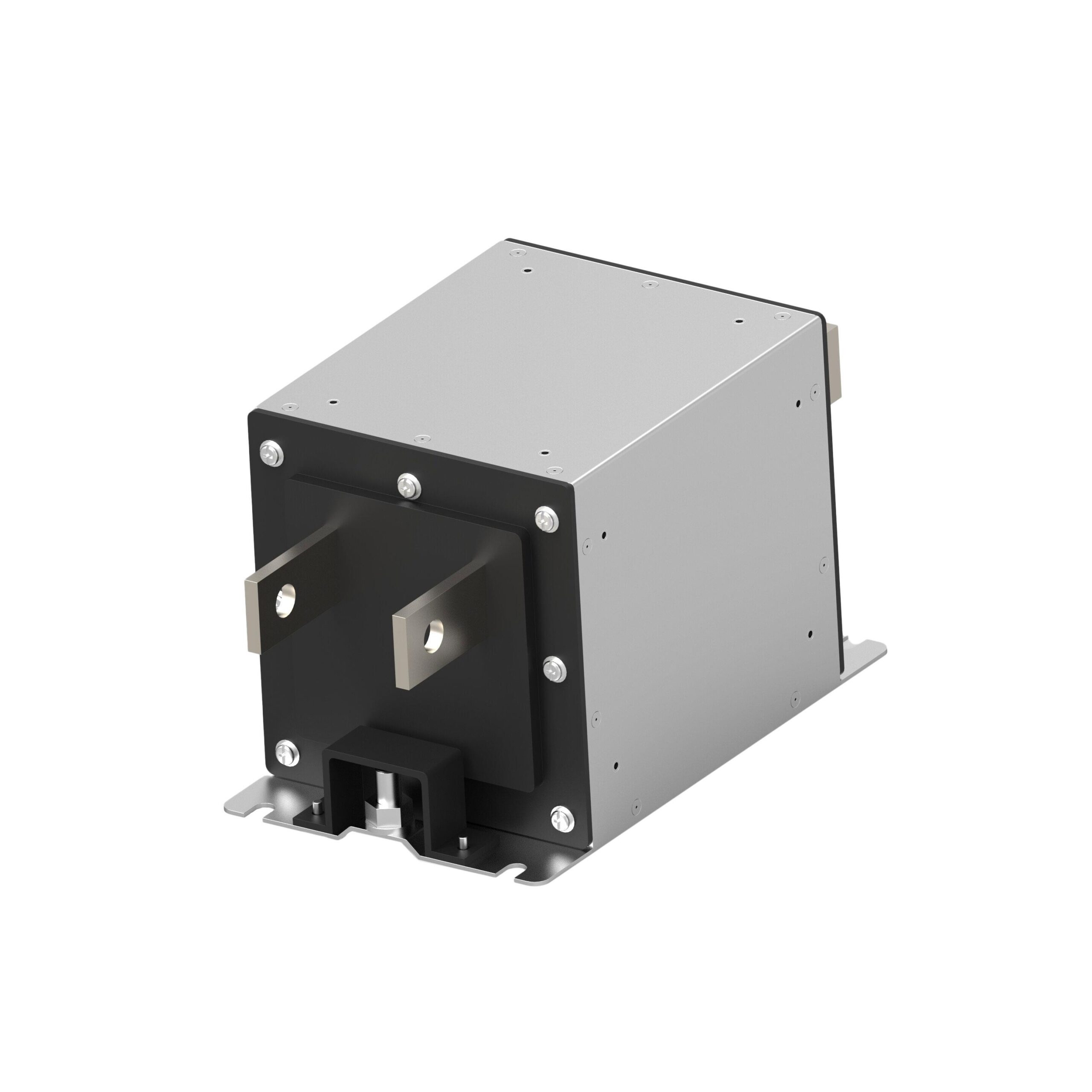

The 2443552-6 is a DC EMI filter from the EVX series by TE Connectivity Corcom Filters. It features a 500 VDC voltage rating and a 300 A current capacity. Designed for chassis mounting with busbar termination, this component operates within a temperature range of -40°C to +100°C. The unit measures 200 mm in length, 122 mm in width, and 128 mm in height, incorporating a 0.1 uF capacitance value.
Feature Summary
- Provides effective attenuation of electromagnetic interference in direct current circuits
- Engineered specifically for high-current electric vehicle charging applications
- Constructed for robust chassis mounting using busbar connections
Applications
- Electric vehicle (EV) charging systems
- High-power DC power conditioning
- Industrial DC power supply filtering
Procurement Notes
Verify the specific datasheet version before procurement as product status may change. Confirm that the busbar termination style matches your system requirements. Check for RoHS compliance details if required by your manufacturing standards. Ensure the chassis mount dimensions fit your enclosure design constraints prior to ordering.
Selection Notes
Select this model when high current handling up to 300 A is required for DC applications. Consider the EVX series for superior EMI performance compared to standard filters. Verify that the physical dimensions accommodate your available chassis space. Ensure the operating temperature range meets your environmental conditions.
Part Context
This component belongs to the EVX series, which specializes in high-voltage DC filtering solutions. TE Connectivity Corcom Filters designs these units for demanding industrial and automotive environments. The series focuses on providing reliable noise suppression for sensitive electronic equipment connected to high-power DC sources.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for potential cross-references or updated series replacements.
