2443552-7

Overview

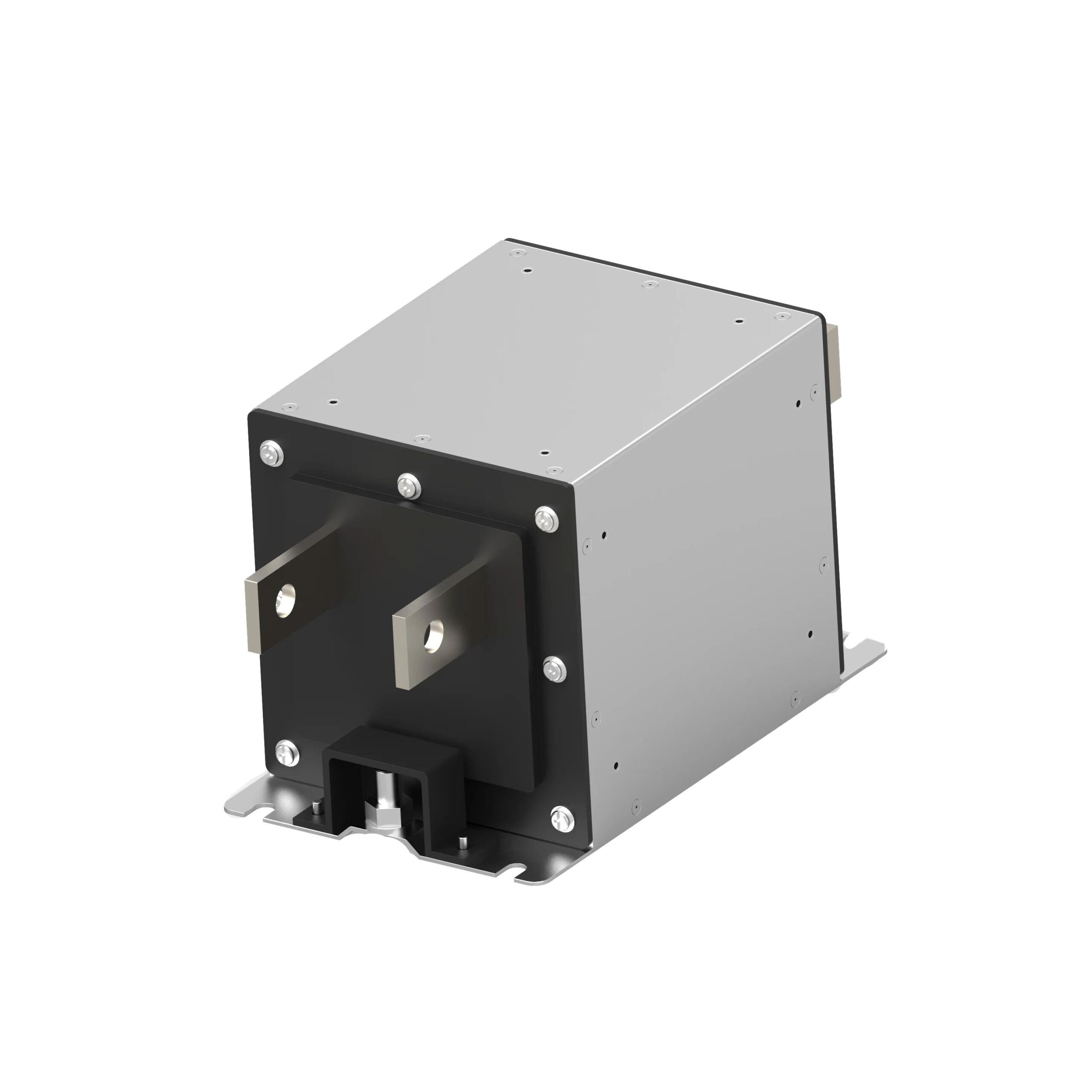

The TE Connectivity Corcom Filters model 2443552-7 is a high-voltage DC EMI/EMC line filter belonging to the EVX series. It is engineered for demanding electric vehicle (EV) charging infrastructure, supporting power levels from 75kW up to 2.4MW in fast charger applications. The component provides effective electromagnetic interference attenuation for high-power direct current systems.

Feature Summary

• Engineered for high-voltage direct current environments typical of modern electric vehicle charging stations
• Provides robust electromagnetic interference and radio frequency interference attenuation
• Designed to handle substantial power loads required by high-speed charging networks

Applications

• Electric vehicle fast charging stations
• High-power DC power distribution systems
• Industrial EV battery charging infrastructure

Procurement Notes

Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the specific suffix matches your design requirements, as variations may exist within the EVX series. Ensure compatibility with your system's voltage and current ratings. Check for any recent product change notices or end-of-life announcements directly from the manufacturer.

Selection Notes

Select this component when designing high-power DC charging solutions requiring significant EMI suppression. Consider the EVX series capabilities for handling high currents and voltages. Evaluate thermal management requirements given the high power density associated with 75kW to 2.4MW applications. Ensure the chassis mount style fits your enclosure constraints.

Part Context

This filter is part of the EVX series, which specializes in high-voltage DC filtering for the electric mobility sector. The series addresses the unique noise challenges posed by high-power converters and inverters used in rapid charging equipment. It complements other Corcom components designed for both AC and DC power integrity in automotive and industrial settings.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Cross-reference specifications such as voltage rating, current capacity, and attenuation curves to ensure functional parity. Verify mechanical dimensions and mounting styles if physical replacement is necessary.
