2443552-8

Overview

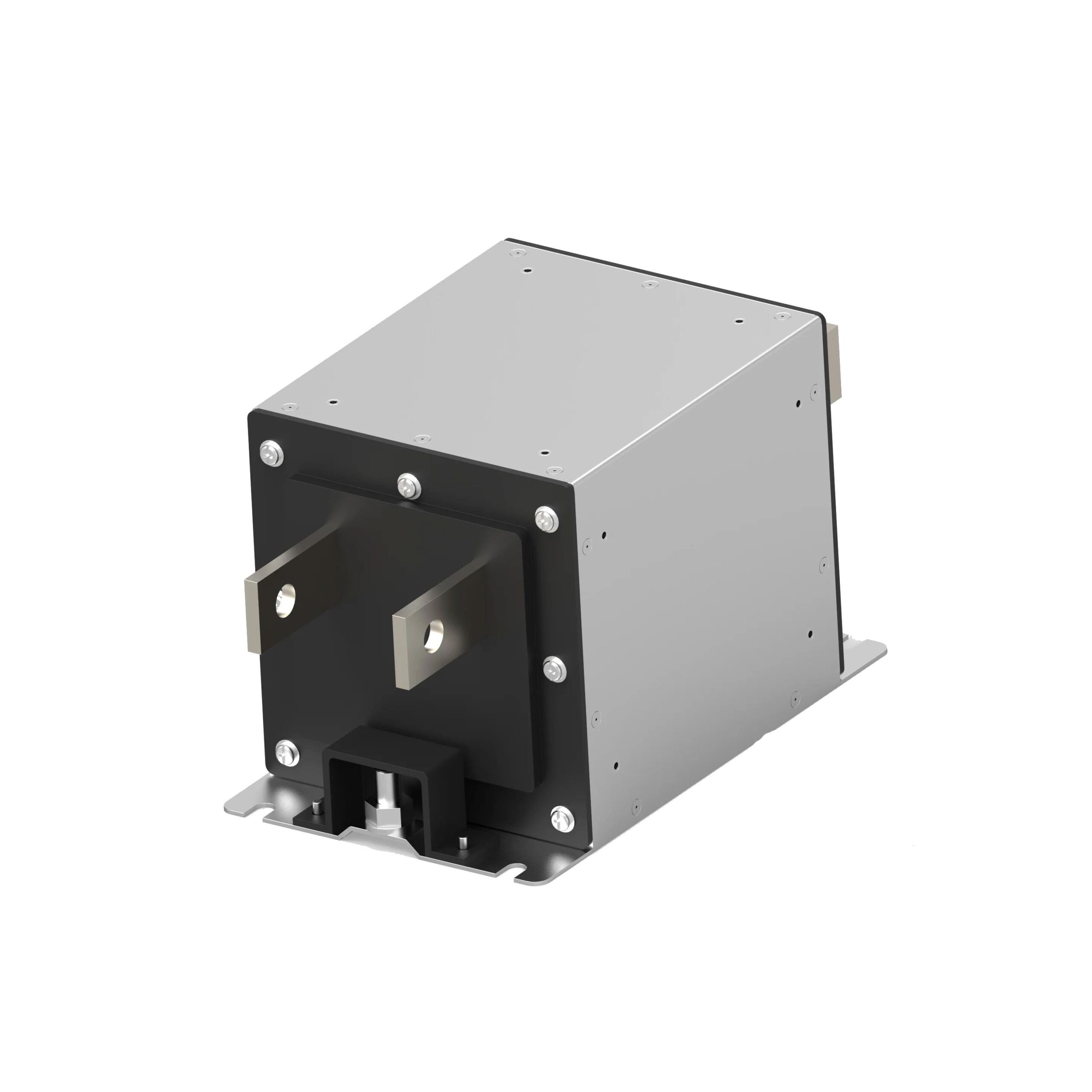

The 2443552-8 is a DC EMC/EMI line filter from the EVX series by TE Connectivity Corcom Filters. It features a two-stage terminal post design rated for 500V DC and 300A current. This component provides effective EMI attenuation in high-voltage direct current applications, specifically engineered for electric vehicle charging systems.

Feature Summary

• Two-stage terminal post architecture
• High voltage DC EMI attenuation
• EV charging application design

Applications

• Electric vehicle charging stations
• DC power distribution systems
• High voltage battery management units

Procurement Notes

Verify the specific current rating variant required, as the EVX series includes models with different amperage ratings such as 1 kA or 600 A. Confirm that the 300 A specification matches the system load requirements. Check for end-of-life status or alternative sourcing options due to potential discontinuation of older manufacturing runs.

Selection Notes

Select this model when a robust two-stage filtering solution is needed for 500V DC environments. Ensure the terminal post interface aligns with the busbar or cable connection scheme. Compare against other EVX variants if higher current capacity like 1 kA is necessary for the specific deployment scenario.

Part Context

This part belongs to the EVX series, which specializes in high-performance DC filtering for automotive and industrial traction applications. The series is characterized by its ability to handle significant electrical loads while maintaining strict electromagnetic interference standards in demanding operational environments.

Replacement Considerations

Consider the 1-2443552-8 for higher current requirements up to 1 kA. Evaluate the 1-2443552-5 for 600 A applications within the same series. Verify mechanical compatibility before substituting with other EVX models.
