2443552-9

Overview

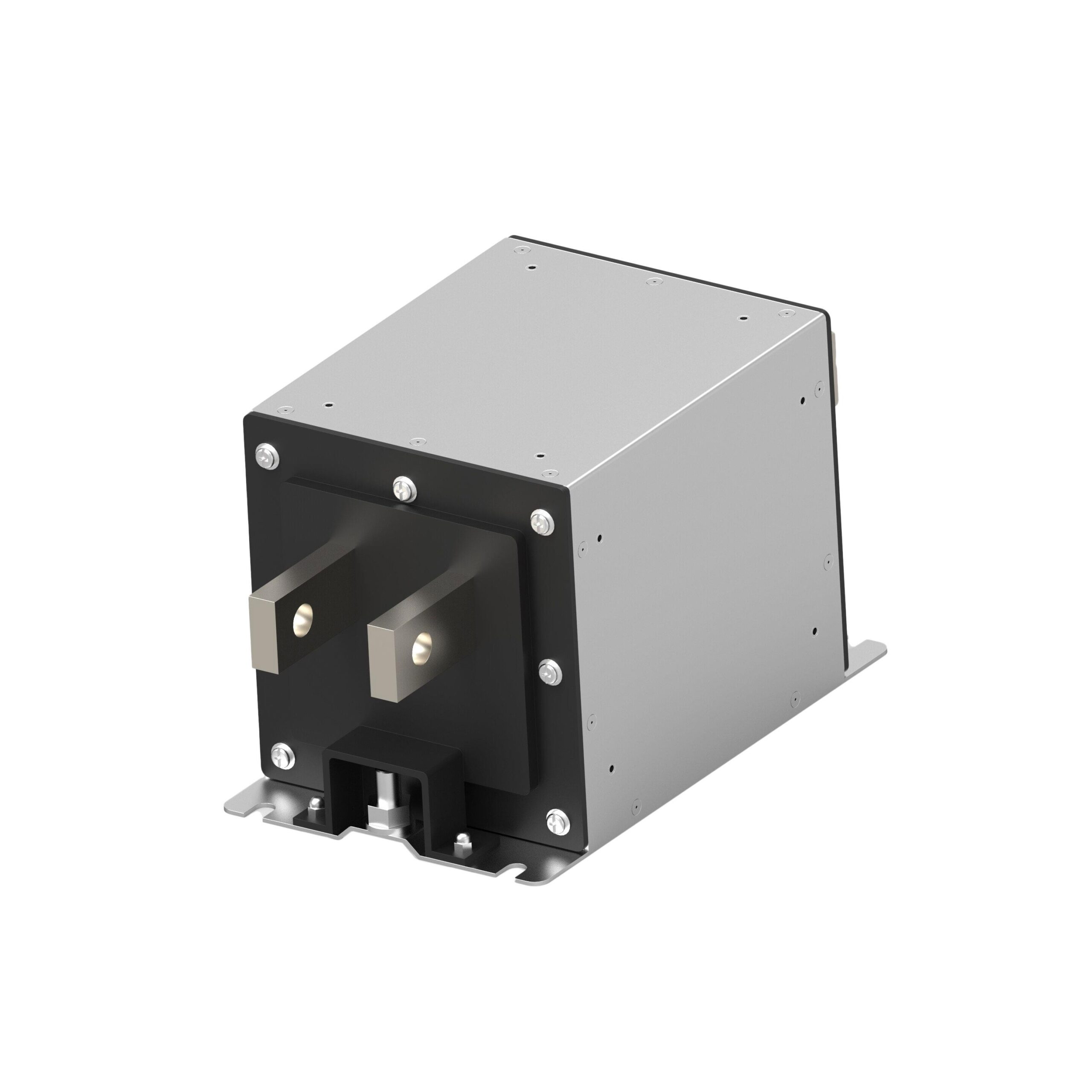

The TE Connectivity Corcom Filters model 2443552-9 is a high voltage DC EMI filter belonging to the EVX series. It is designed for electromagnetic interference suppression in converters and power applications, specifically meeting requirements for electric vehicle conductive charging systems. The component features a two-stage terminal post configuration with a current rating of 1 kA and a voltage rating of 500 VDC.

Feature Summary

• Provides effective EMI attenuation for high voltage DC applications
• Designed specifically for electric vehicle charging system compliance
• Utilizes a two-stage terminal post architecture

Applications

• Electric vehicle (EV) charging infrastructure
• High voltage DC converters
• Power electronics requiring EMI suppression

Procurement Notes

Verify the specific datasheet version and lead times directly with authorized distributors or TE Connectivity, as availability may vary. Confirm that the 1 kA rating and 500 VDC specifications align with your system design requirements before procurement.

Selection Notes

Select this component when designing high voltage DC circuits that require robust EMI filtering for EV charging standards. Ensure the chassis mounting style and busbar or terminal post connections match your mechanical integration needs.

Part Context

This part belongs to the EVX series from TE Connectivity Corcom Filters, which specializes in high performance power line filters. The series is engineered to handle demanding electrical environments while maintaining strict electromagnetic compatibility standards for modern power conversion technologies.

Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers within the EVX series or equivalent high voltage DC filter families. Cross-referencing with other manufacturers requires careful validation of electrical ratings and physical dimensions.
