2443554-1

Overview

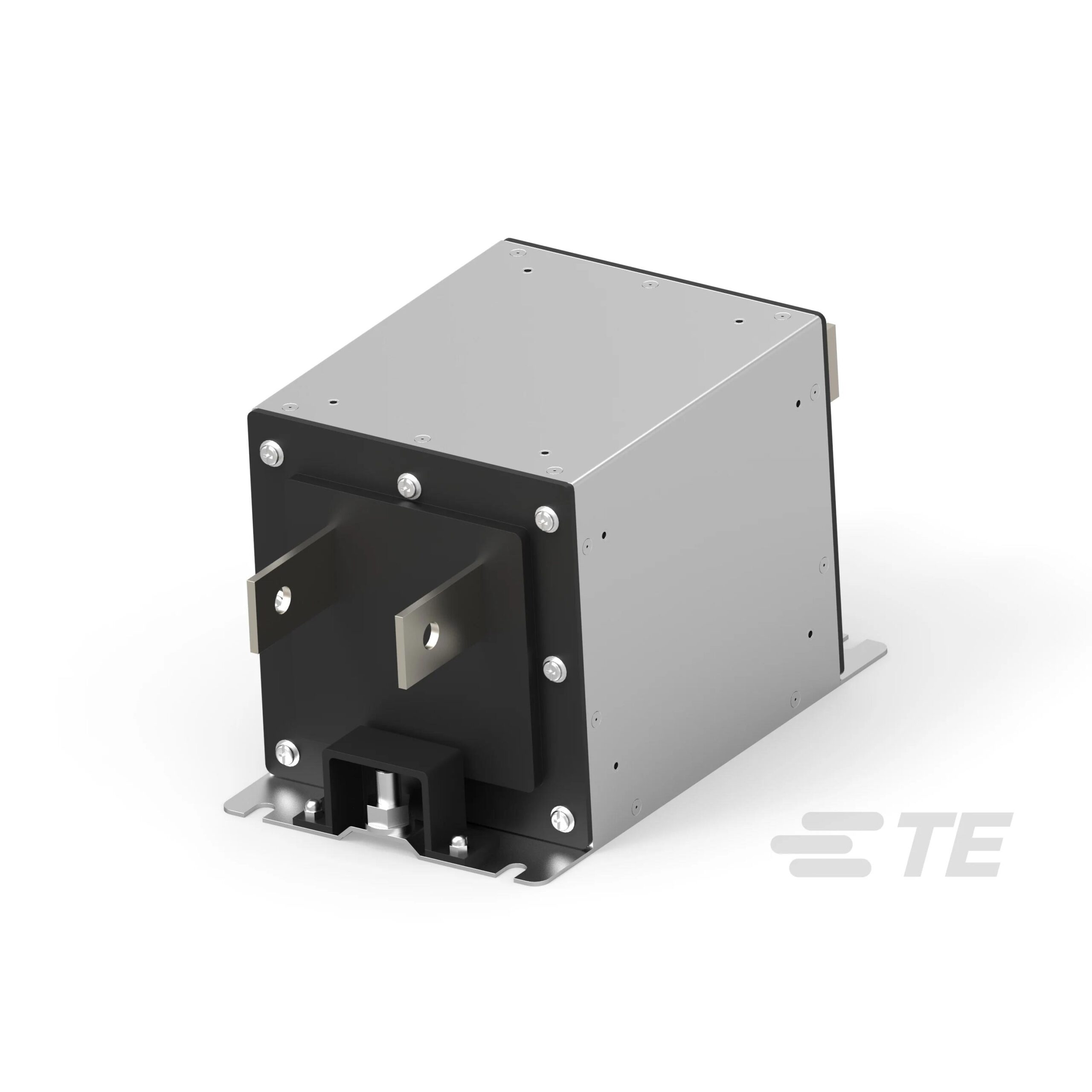

The TE Connectivity Corcom Filters model 2443554-1 is a high voltage DC EMI filter belonging to the EVX series. It features a chassis mount installation style with busbar termination. The component has a voltage rating of 1 kVDC and a current rating of 1.6 kA. It operates within a temperature range of -40°C to +100°C. The physical dimensions are 270 mm in length, with a height of 128 mm and a width of 122 mm.

Feature Summary

• Designed for electric vehicle charging applications
• Provides effective EMI attenuation in DC power lines

Applications

• Electric vehicle charging systems
• High voltage DC power conditioning
• Industrial DC power supplies

Procurement Notes

Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the specific suffix matches the required electrical ratings and mounting configuration. Ensure compatibility with existing busbar interfaces and chassis mounting requirements. Check for any recent product change notices or lifecycle status updates directly from the manufacturer.

Selection Notes

Select this component when a high current DC EMI filter is required for EV infrastructure. Consider the 1.6 kA current rating and 1 kVDC voltage limit as primary constraints. Evaluate the chassis mount and busbar termination style against available panel space and connection methods. Compare thermal performance at maximum operating temperatures.

Part Context

This component is part of the Corcom EVX series, which specializes in high voltage DC filtering solutions. The EVX series is engineered specifically for demanding environments found in electric mobility and industrial power applications. It represents a robust solution for managing electromagnetic interference in high power DC circuits.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
