2443554-4

Overview

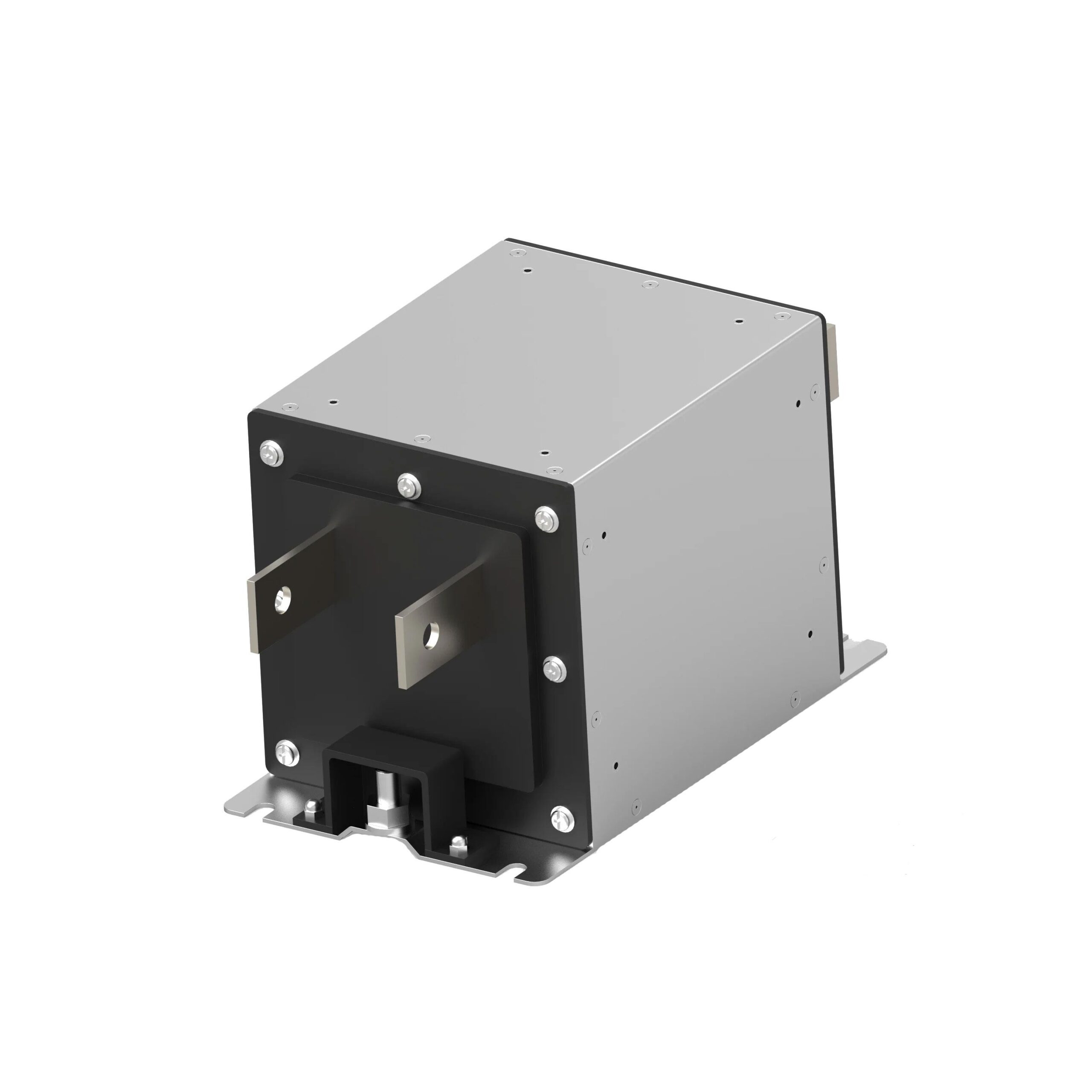

The TE Connectivity Corcom Filters model 2443554-4 is a DC EMI filter belonging to the EVX series. It features a chassis mount installation style with busbar input and output termination types. The component has a voltage rating of 1000 VDC and a current rating of 150 A. It operates at a frequency of 0 Hz.

Feature Summary

• Designed for high-current applications requiring electromagnetic compatibility filtering
• Supports fast charger power handling from 75kW to 2.4MW

Applications

• High-power converters
• Fast chargers

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current availability status, as product lifecycles may change. Ensure that the electrical ratings match the system requirements before procurement. Check for any RoHS or REACH compliance details in the latest datasheet.

Selection Notes

Select this component based on its 1000 VDC and 150 A ratings for high-power DC applications. Consider the chassis mount style and busbar terminations for integration into systems requiring robust mechanical connections and high current capacity.

Part Context

This part belongs to the EVX series of high voltage DC EMI filters by TE Connectivity / Corcom. These filters are engineered to handle significant power levels, making them suitable for demanding industrial and transportation applications where high voltage and current filtering are critical.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
