2443554-5

Overview

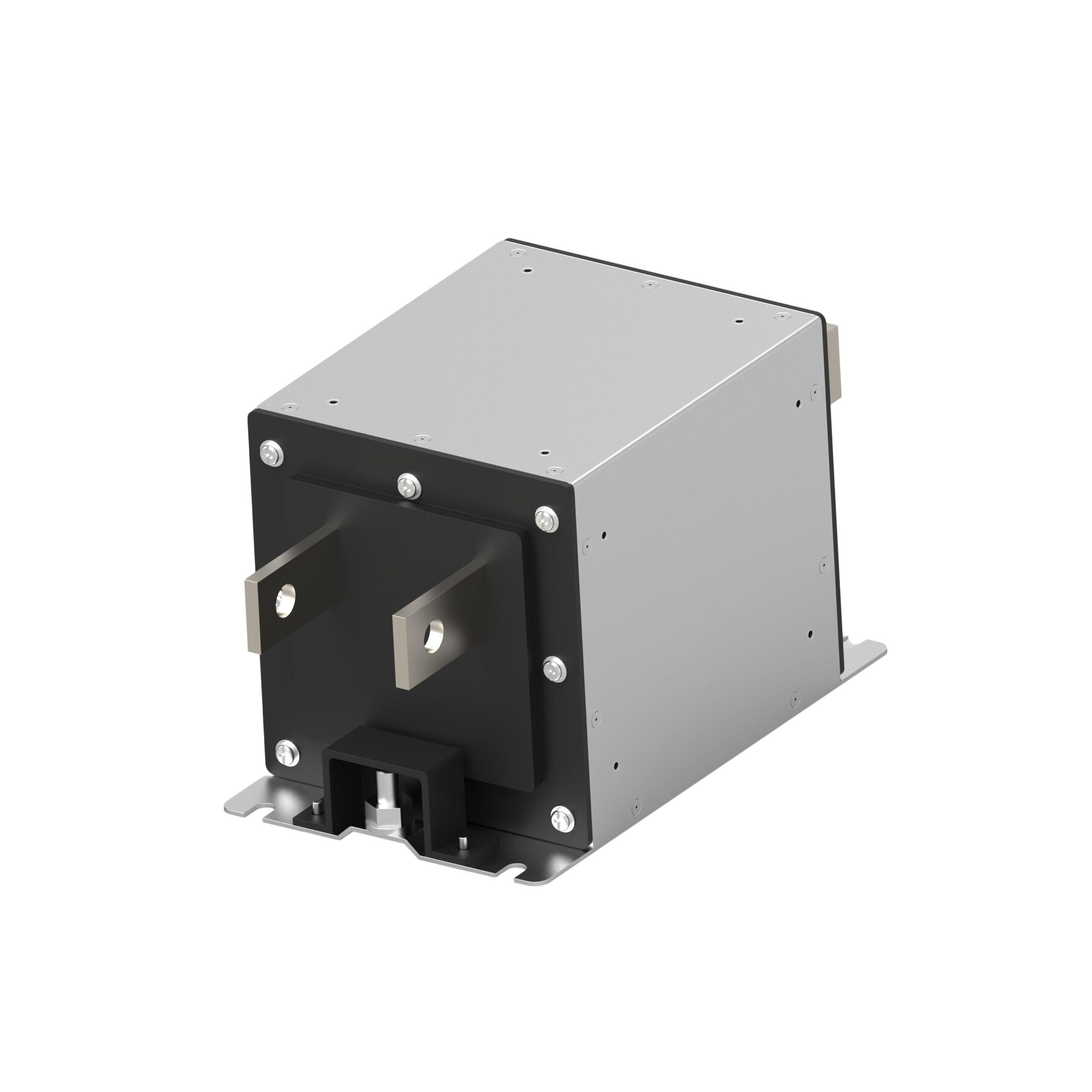

The TE Connectivity Corcom Filters model 2443554-5 is a two-stage DC EMI filter designed for high-voltage applications. It features a current rating of 300 A and an operating voltage of 1000 VDC. The component utilizes busbar termination types for both input and output connections, ensuring robust electrical interfacing. Designed for chassis mounting, this filter belongs to the EVX series and is specifically engineered to provide electromagnetic interference attenuation in electric vehicle charging systems.

Feature Summary

• Provides two-stage electromagnetic interference attenuation for direct current circuits
• Engineered specifically for conductive charging systems in electric vehicles
• Utilizes busbar termination interfaces for secure high-current connections

Applications

• Electric vehicle charging infrastructure
• High-voltage DC power conditioning systems
• Industrial equipment requiring EMI suppression

Procurement Notes

Verify the specific datasheet version before procurement, as product specifications may be subject to change. Confirm that the busbar termination dimensions match your mechanical assembly requirements. Ensure compatibility with the 1000 VDC operating environment. Check for any recent lifecycle status updates regarding availability or obsolescence notices from the manufacturer.

Selection Notes

Select this component when a two-stage filtering solution is required for 300 A DC applications. Ensure the chassis mount style fits the available enclosure space. Verify that the 1000 VDC rating exceeds the maximum system voltage. Consider the physical dimensions of the busbar terminals for proper cable or bar connection planning.

Part Context

This part belongs to the Corcom EVX series, which specializes in high-voltage DC filters for electric mobility. The series addresses the stringent EMI requirements of modern electric vehicle charging stations. These filters are designed to handle significant current loads while maintaining signal integrity in noisy electrical environments typical of high-power DC systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guide for potential alternatives. Ensure any replacement maintains the same 300 A current rating and 1000 VDC voltage specification.
