2443554-6

Overview

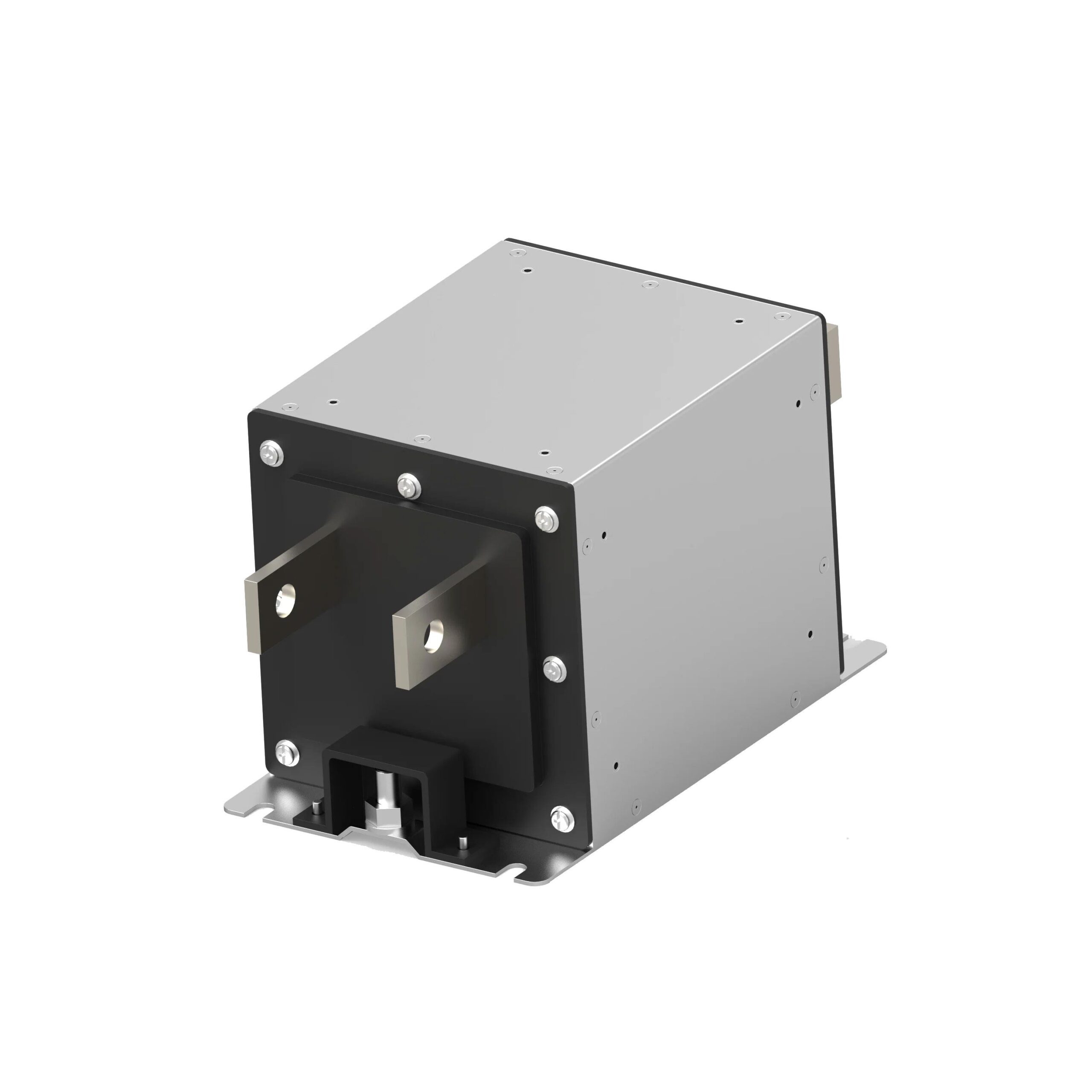

The TE Connectivity Corcom Filters model 2443554-6 is a DC EMI filter belonging to the EVX series. It features a two-stage terminal post design rated for 1000 VDC and 600 A. The component utilizes chassis mount installation with busbar termination. It is engineered for high-power applications, specifically supporting fast chargers with power capacities ranging from 75 kW to 2.4 MW.

Feature Summary

• Two-stage terminal post architecture
• High voltage DC filtering capability
• Chassis mount configuration

Applications

• Fast charger systems
• High power DC equipment

Procurement Notes

Verify the exact current rating and voltage specifications against the official datasheet before procurement. Confirm that the busbar termination style matches your system requirements. Check the lifecycle status as high-power components may have specific availability constraints or end-of-life notices.

Selection Notes

Select this component when designing systems requiring robust DC EMI suppression at high currents. Ensure the chassis mounting provisions align with the enclosure design. Verify thermal management capabilities are sufficient for the intended 600 A operating environment.

Part Context

This part belongs to the EVX series of high voltage DC EMI filters from TE Connectivity Corcom Filters. The series is designed to handle significant power loads in demanding industrial and charging applications.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
