Product Detailed Parameters
- Description：LINE FLTR 1000VDC 300A CHASS MNT
- Series：EVX
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：1000V (1kV)
- Voltage - Rated AC：-
- Current：300 A
- Frequency - Operating：DC
- Applications：Converter
- Approval Agency：UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

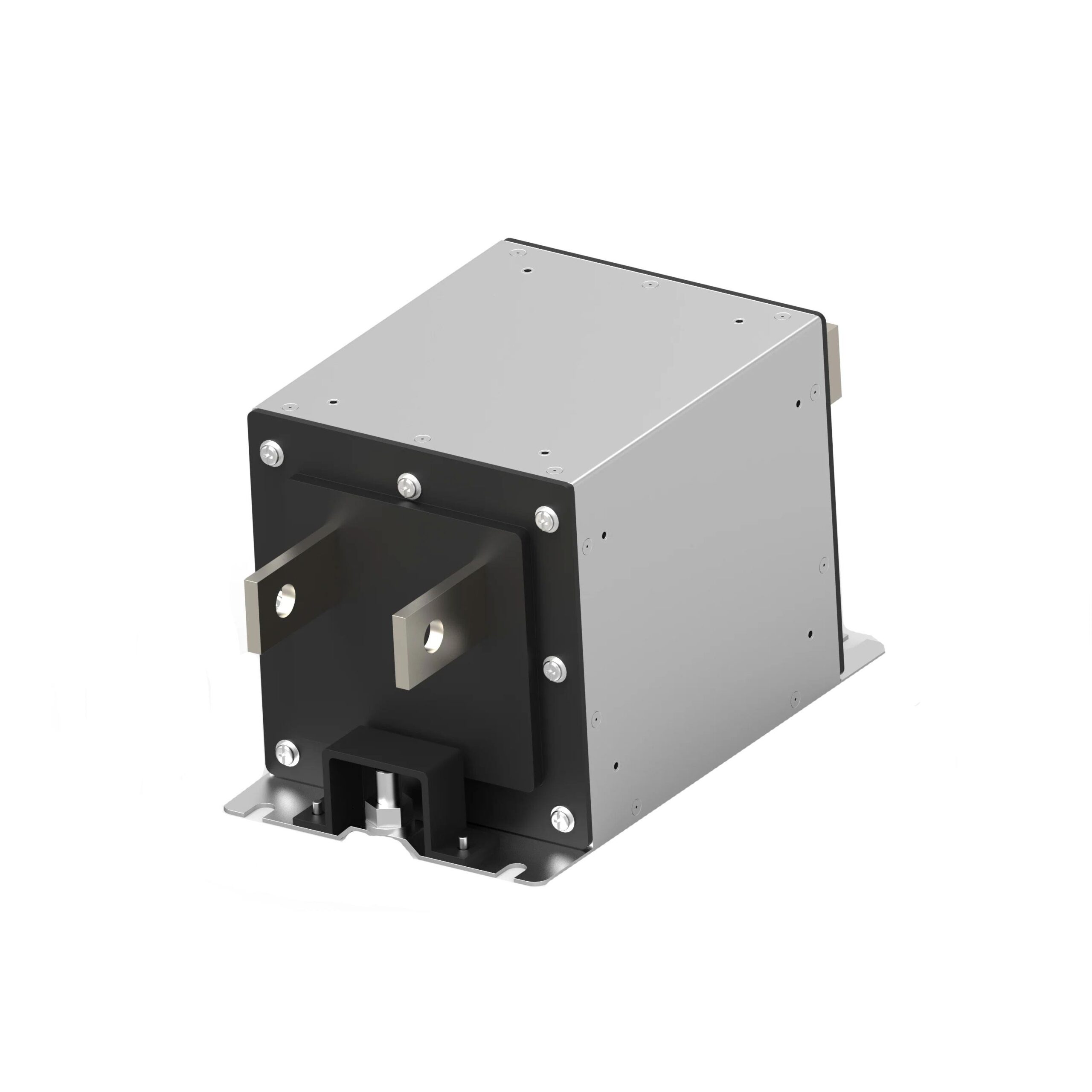

The TE Connectivity Corcom Filters model 2443554-8 is a DC EMI filter belonging to the EVX Series. It features a voltage rating of 1 kVDC and a current rating of 300 A. The unit utilizes busbar termination and chassis mount installation styles. Electrical specifications include a capacitance of 2 uF and an operating frequency of 0 Hz. Physical dimensions are 200 mm in length, 122 mm in width, and 128 mm in height. The component operates within a temperature range of -40 C to +100 C and holds UL compliance.
Feature Summary
- Two-stage DC EMI filtering architecture
- High-voltage direct current capability
- Busbar terminal connection interface
Applications
- Electric vehicle charging systems
- High-power DC power conditioning
- Industrial DC power distribution
Procurement Notes
Verify end-of-life status before procurement as the manufacturer has scheduled this item for obsolescence. Confirm that the busbar termination style matches your system's mechanical design requirements. Ensure the 1 kVDC voltage rating and 300 A current capacity align with your specific application loads. Check for updated replacement part numbers from the manufacturer due to the discontinuation notice.
Selection Notes
Select this component when high-current DC filtering is required for electric vehicle infrastructure. The chassis mount style and busbar connections suit heavy-duty industrial environments. Verify that the physical dimensions fit within the available enclosure space. Consider the thermal management capabilities given the high current rating and operating temperature limits.
Part Context
This component is part of the EVX Series by TE Connectivity Corcom Filters, specialized for high-voltage DC applications. The series targets demanding power electronics environments requiring robust EMI suppression. The EVX line emphasizes durability and high performance in electric mobility and industrial sectors.
Replacement Considerations
Check for official substitute part numbers from TE Connectivity Corcom Filters due to the scheduled obsolescence. Verify electrical compatibility if considering alternative models.
