2443554-9

Overview

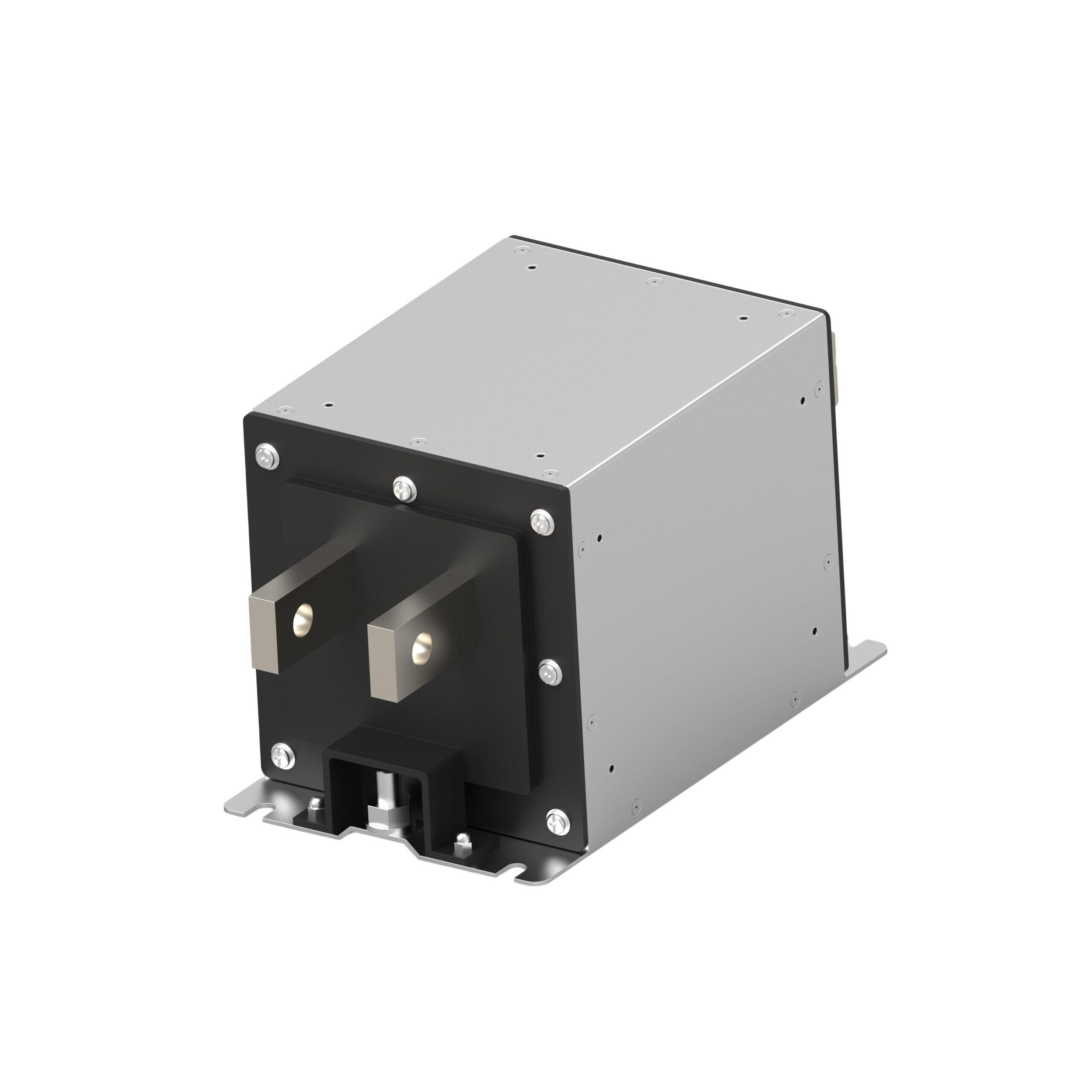

The TE Connectivity Corcom Filters model 2443554-9 is a DC EMI filter belonging to the EVX series. It features a voltage rating of 1 kVDC and a current rating of 1000 A. The component utilizes busbar termination types for both input and output connections. Designed for chassis mounting, it operates at a frequency of 0 Hz. The unit is supplied in bulk packaging.

Feature Summary

• Provides effective electromagnetic interference attenuation for high voltage direct current applications
• Engineered specifically for electric vehicle charging systems
• Features a two-stage filtering architecture

Applications

• Electric vehicle charging infrastructure
• High voltage DC power conditioning
• Industrial DC power supply systems

Procurement Notes

Verify the specific configuration suffix against official documentation before procurement. Confirm that the required current and voltage ratings align with system specifications. Check the lifecycle status as components may be subject to obsolescence. Ensure compatibility with existing busbar mounting interfaces and thermal management requirements.

Selection Notes

Select this component when designing high-power DC circuits requiring robust EMI suppression. Consider the physical dimensions and chassis mounting constraints during layout. Evaluate the thermal performance under continuous load conditions. Verify compliance with relevant safety standards for the target application environment.

Part Context

This part belongs to the EVX series from TE Connectivity Corcom Filters, which specializes in high-performance power line filters. The series is tailored for demanding environments involving high voltages and currents. It represents a solution for maintaining signal integrity and regulatory compliance in modern electrified transport and industrial power systems.

Replacement Considerations

Public confirmed substitute part numbers are not available.
