Product Detailed Parameters
- Description：LINE FLTR 1500VDC 150A CHASS MNT
- Series：EVX
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：1500V (1.5kV)
- Voltage - Rated AC：-
- Current：150 A
- Frequency - Operating：DC
- Applications：Converter
- Approval Agency：UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

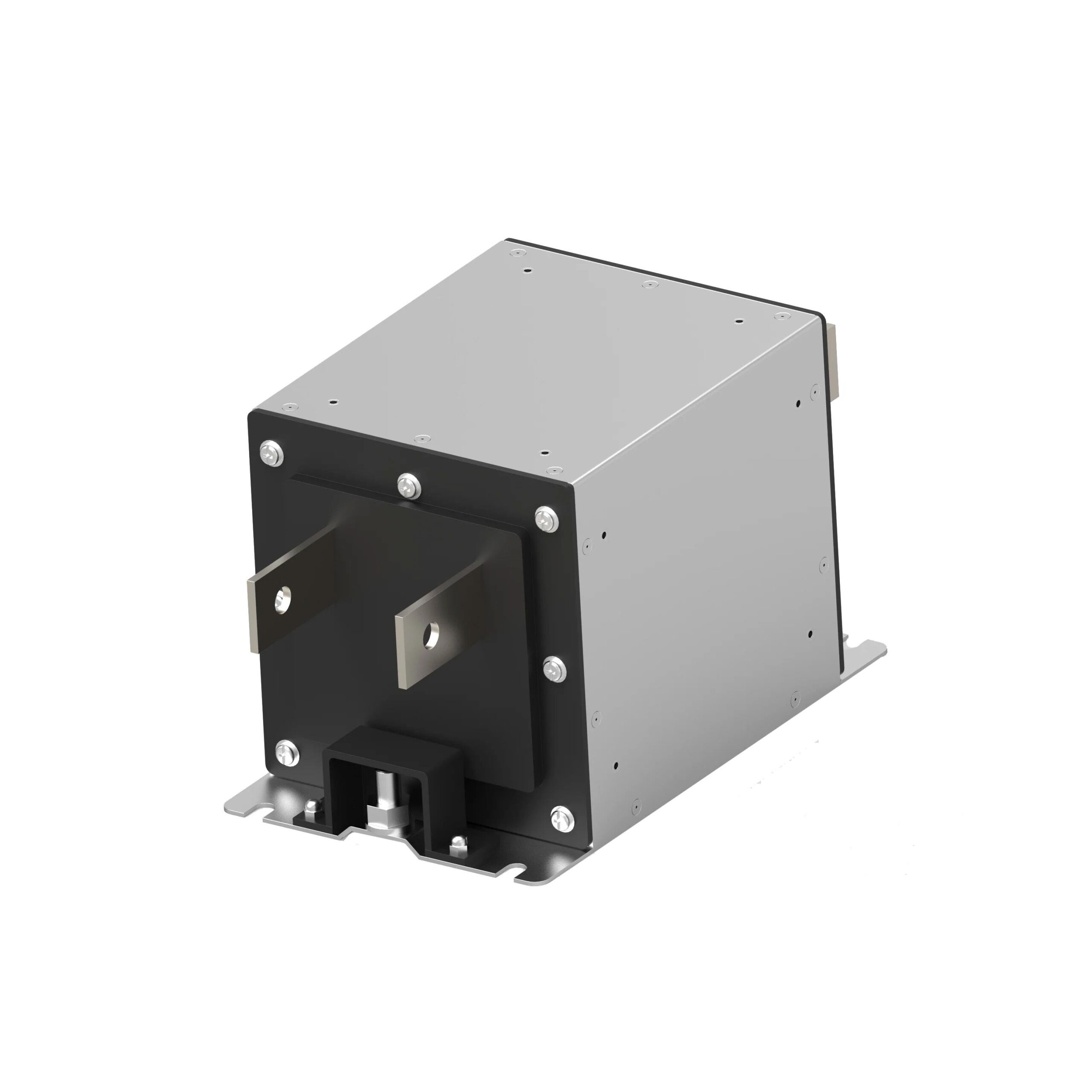

The TE Connectivity Corcom Filters model 2443555-1 is a DC EMI filter belonging to the EVX series. It features a chassis mount installation style with busbar termination. The component has a voltage rating of 1.5 kVDC and a current rating of 450 A. Its physical dimensions are 200 mm in length, 122 mm in width, and 128 mm in height. The unit operates within a temperature range of -40 C to +100 C.
Feature Summary
- Designed for high-voltage direct current applications
- Provides effective electromagnetic interference attenuation
- Utilizes a robust chassis mount configuration
Applications
- Electric vehicle charging systems
- High-power industrial converters
- Direct current power conditioning equipment
Procurement Notes
Verify the specific part number suffix against official manufacturer documentation to confirm exact ratings and terminal configurations. Ensure compatibility with existing busbar interfaces and mounting hardware. Confirm availability status as product lifecycle stages may affect supply continuity. Cross-reference dimensional requirements with enclosure specifications prior to procurement.
Selection Notes
Select this component based on its 1.5 kVDC voltage rating and 450 A current capacity. Evaluate the two-stage filtering architecture for required noise suppression levels. Consider the chassis mount style and busbar termination for integration into high-current DC systems. Verify thermal operating limits align with the intended application environment.
Part Context
This filter is part of the EVX series from TE Connectivity Corcom, specialized for electric vehicle infrastructure. The series focuses on high-voltage DC power management. The 2443555-1 variant specifically addresses high-current requirements typical in modern EV charging stations and related industrial power electronics.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TE Connectivity documentation for equivalent or alternative models within the EVX series or other compatible high-voltage DC filter lines.
