2443555-2

Overview

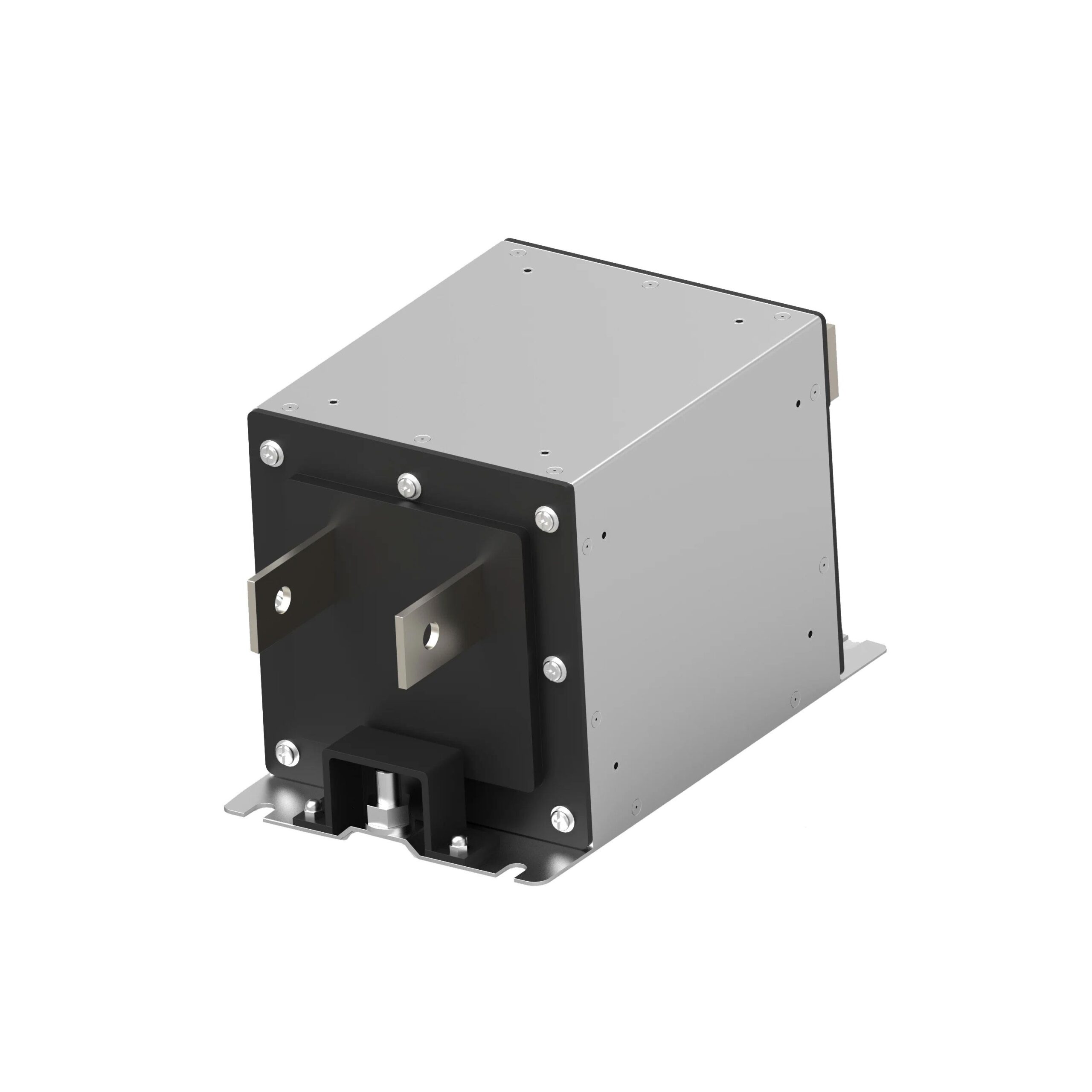

The TE Connectivity Corcom Filters model 2443555-2 is a DC EMI filter belonging to the EVX series. It features a voltage rating of 1.5 kVDC and a current rating of 150 A. The component utilizes chassis mount installation with busbar termination. It includes a capacitance value of 100 nF and operates at 0 Hz. The unit holds UL compliance certification.

Feature Summary

• Designed for high-voltage direct current applications
• Provides electromagnetic interference suppression in power circuits
• Constructed for robust chassis mounting configurations

Applications

• Industrial power distribution systems
• High-power electronic equipment filtering
• Direct current circuit noise reduction

Procurement Notes

Verify component status as this part number is marked as obsolete and subject to discontinuation by the manufacturer. Confirm availability through authorized distributors or secondary markets, as standard supply channels may no longer stock new units. Ensure compatibility with existing system requirements before procurement.

Selection Notes

Select this component for applications requiring high-current DC filtering capabilities. Evaluate the specific voltage and current ratings against system demands. Consider the chassis mount style and busbar termination method during mechanical integration planning. Verify that the physical dimensions fit within the designated enclosure space.

Part Context

This component belongs to the Corcom EVX series of power line filters manufactured by TE Connectivity. The series is known for handling significant electrical loads in demanding environments. This specific model represents a specialized solution for direct current interference mitigation within industrial and commercial power infrastructure networks.

Replacement Considerations

Consult official documentation for verified substitute part numbers. Cross-reference technical specifications carefully when evaluating alternative components from other manufacturers to ensure functional equivalence.
