2443555-3

Overview

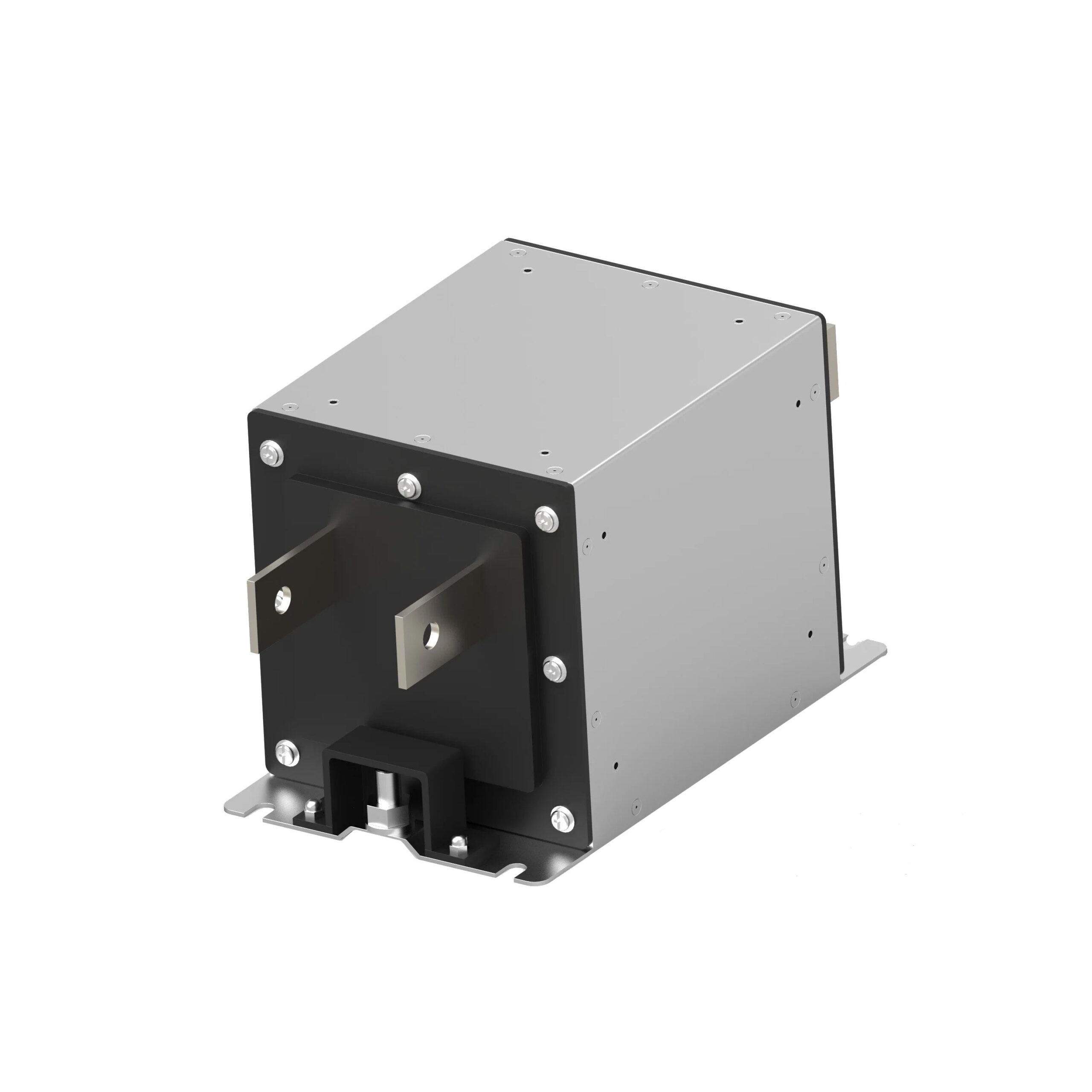

The TE Connectivity Corcom Filters model 2443555-3 is a DC EMC/EMI line filter belonging to the EVX series. It features a two-stage terminal post design intended for high-voltage direct current applications. The component has a rated voltage of 1500 VDC and a rated current of 150 A. It utilizes busbar termination and chassis mount installation style. The filter includes a capacitance value of 1 uF and operates within a temperature range of -40 C to +100 C. Physical dimensions are 200 mm in length, 122 mm in width, and 128 mm in height.

Feature Summary

• Two-stage electronic architecture designed for effective electromagnetic interference suppression in DC power circuits.
• Engineered specifically for high-power electric vehicle charging infrastructure applications.
• Capable of handling high voltage levels up to 1500 VDC with robust thermal performance.

Applications

• Electric vehicle (EV) charging stations
• High voltage DC power distribution systems
• Industrial DC power conditioning equipment

Procurement Notes

Verify the specific datasheet version before ordering, as the product lifecycle status indicates it may be subject to obsolescence or discontinuation by the manufacturer. Confirm that the busbar termination style matches the mechanical interface requirements of the target assembly. Ensure the 150 A current rating and 1500 VDC voltage rating align with the system's operational parameters to prevent premature failure.

Selection Notes

Select this component when designing systems requiring high-voltage DC filtering with significant current capacity. The EVX series provides specialized attenuation for electric vehicle environments. Consider the physical dimensions and chassis mounting requirements during the layout phase. Verify compatibility with the specific EMI/RFI noise profiles expected in the application environment.

Part Context

This part belongs to the TE Connectivity Corcom Filters EVX series, which specializes in high-voltage DC EMI filters. These components are engineered to manage power levels ranging from 75kW to 2.4MW in fast charger applications. The series focuses on providing reliable noise suppression for critical DC power infrastructure.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity channels for potential cross-reference options if this specific model becomes unavailable.
