2443555-4

Overview

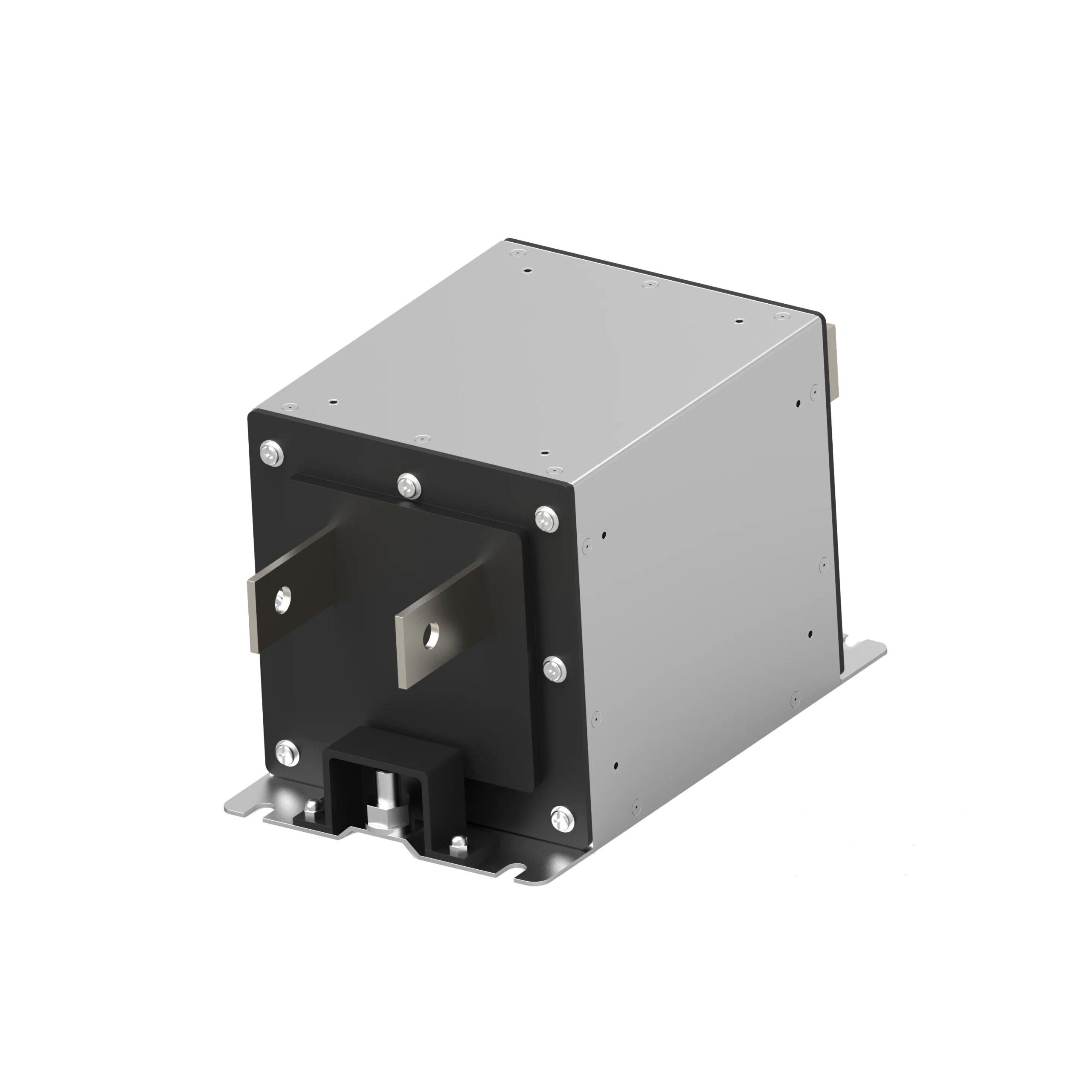

The TE Connectivity Corcom Filters 2443555-4 is a high-voltage DC EMI filter belonging to the EVX series. It is rated for 1.5 kVDC and supports currents up to 1600 A. The component features a two-stage terminal post design for effective attenuation in electric vehicle charging applications. It operates within a temperature range of -40°C to +100°C and utilizes chassis mount installation with busbar termination.

Feature Summary

• Two-stage terminal post architecture for enhanced EMI attenuation
• High voltage DC capability suitable for EV infrastructure
• Busbar termination style for robust electrical connections

Applications

• Electric vehicle (EV) charging stations
• Industrial power conversion systems
• High current DC power line filtering

Procurement Notes

Verify the specific current rating variant, as the EVX series includes models rated for different amperages such as 150A or 1600A. Confirm that the 1.5 kVDC rating aligns with system requirements. Check for end-of-life status or obsolescence notices from the manufacturer before finalizing procurement plans.

Selection Notes

Select this component when high-current DC filtering is required for electric vehicle infrastructure. Ensure the chassis mount form factor fits the enclosure constraints. Verify that the busbar termination method matches the available connection hardware in the assembly design.

Part Context

This part belongs to the Corcom EVX series, which specializes in high-power DC filtering solutions. The series is engineered specifically for the demanding environments of electric mobility and industrial power electronics, offering robust construction for high-voltage direct current applications.

Replacement Considerations

Direct substitutes may include other EVX series variants with adjusted current ratings, such as 1-2443555-4 or 2-2443555-4, provided they meet the specific voltage and current requirements of the application.
