Product Detailed Parameters
- Description：LINE FLTR 1500VDC 300A CHASS MNT
- Series：EVX
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：1500V (1.5kV)
- Voltage - Rated AC：-
- Current：300 A
- Frequency - Operating：DC
- Applications：Converter
- Approval Agency：UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

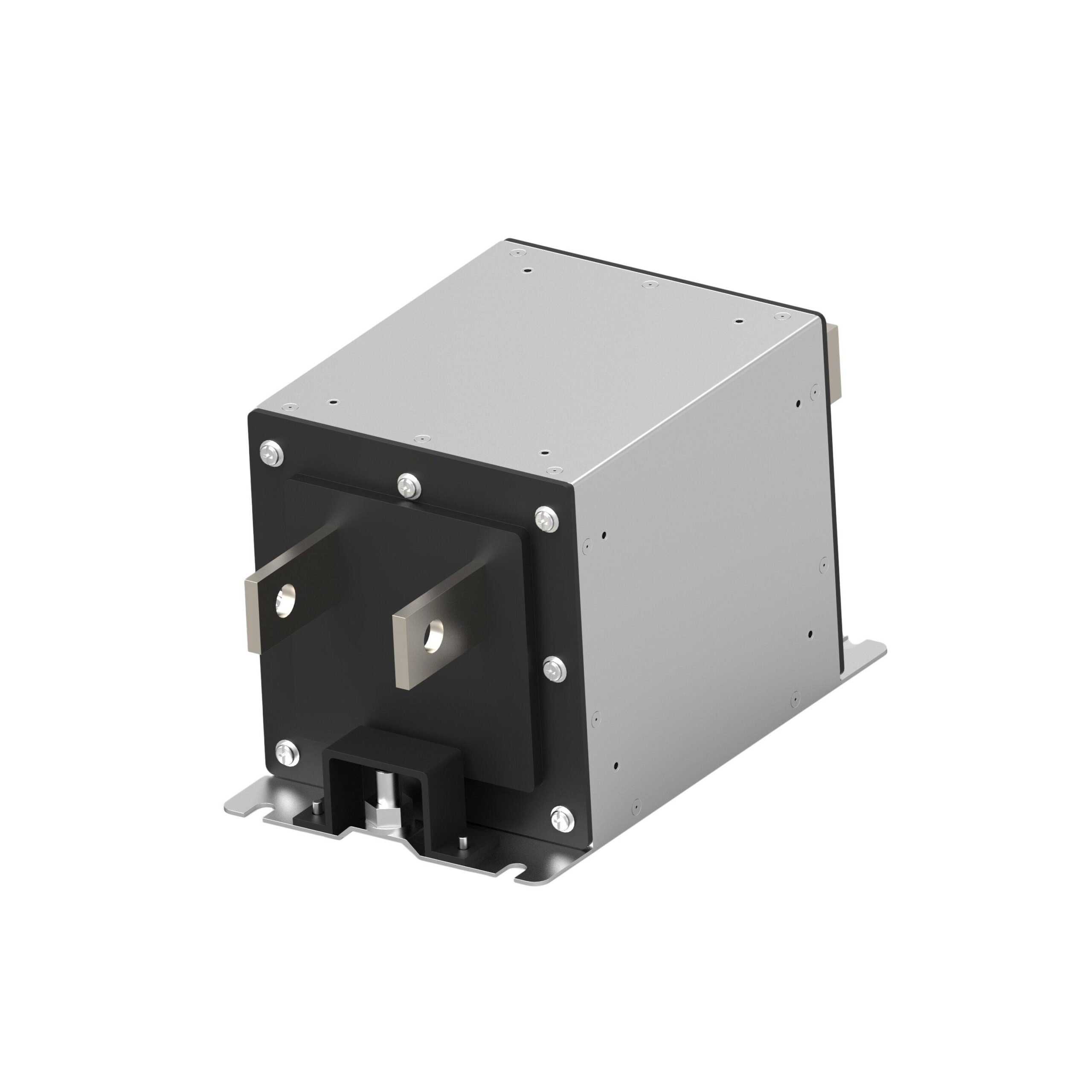

The TE Connectivity Corcom Filters model 2443555-5 is a high-voltage DC EMI filter belonging to the EVX series. It features a current rating of 600 A and an operating voltage of 1500 VDC. The component utilizes busbar termination for both input and output connections, ensuring robust electrical interfacing in high-power environments. Designed for chassis mounting, it provides effective electromagnetic interference attenuation suitable for demanding industrial and electric vehicle applications.
Feature Summary
- High-voltage DC filtering capability rated at 1500 VDC
- High-current handling capacity of 600 A
- Busbar terminal configuration for secure power connections
Applications
- Electric vehicle charging infrastructure
- High-power industrial converters
- EV powertrain systems
Procurement Notes
Verify the specific part number suffix against official TE Connectivity documentation to confirm exact termination style and mechanical dimensions. Confirm availability status as product lifecycles may change. Ensure compatibility with existing chassis mounting hardware and busbar interfaces before procurement.
Selection Notes
Select this component when system requirements demand high current handling alongside significant voltage isolation. The EVX series design supports compact integration into high-density power electronics. Verify thermal management needs relative to the 600 A continuous current rating and ensure the busbar interface matches the system's electrical architecture.
Part Context
This component is part of the Corcom EVX series, specialized for high-voltage direct current applications. The series addresses the growing need for reliable EMI suppression in electric mobility and heavy-duty industrial power conversion sectors where standard filters cannot withstand extreme electrical stresses.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified equivalents. Cross-reference current ratings and voltage specifications carefully when considering alternative models from other manufacturers.
