2443555-6

Overview

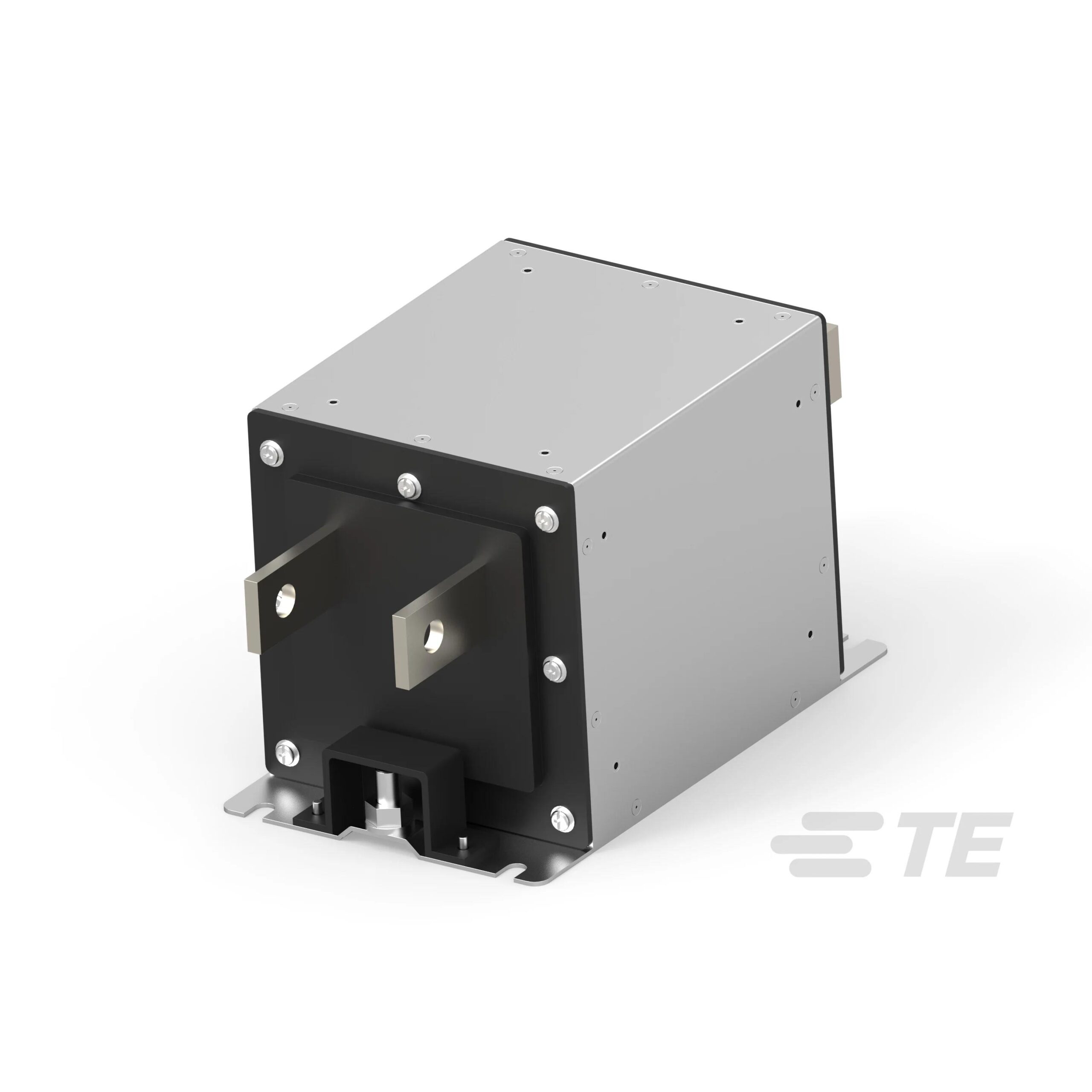

The TE Connectivity Corcom Filters model 2443555-6 is a high-voltage DC EMI filter belonging to the EVX series. It is engineered for electric vehicle charging applications, providing effective electromagnetic interference attenuation in demanding environments. The component features a chassis mount installation style with busbar termination types to ensure robust electrical connections. Rated for a voltage of 1.5 kVDC and a current capacity of 450 A, it operates within a temperature range of -40°C to +100°C. Its physical dimensions are 200 mm in length, 122 mm in width, and 128 mm in height.

Feature Summary

• Designed specifically for electric vehicle charging infrastructure applications
• Provides effective electromagnetic interference attenuation for DC power lines
• Features robust busbar termination for secure high-current connections

Applications

• Electric vehicle charging stations
• High-power industrial converters
• EV battery management systems

Procurement Notes

Verify the specific part number against official manufacturer documentation before procurement. Confirm that the 450 A current rating and 1.5 kVDC voltage specifications align with your system requirements. Ensure compatibility with chassis mounting hardware and busbar interfaces. Check for any updated lifecycle status or alternative recommendations from the manufacturer.

Selection Notes

Select this component when high-voltage DC filtering is required for electric vehicle applications. Consider the 450 A current rating and 1.5 kVDC voltage limit to ensure adequate performance margins. Evaluate the chassis mount form factor and busbar termination against available panel space and connection methods. Verify thermal operating limits for the intended environment.

Part Context

This component is part of the EVX series from TE Connectivity Corcom Filters, which specializes in high-performance power line filters. The EVX series is tailored for high-voltage and high-current DC applications, particularly in the automotive and industrial sectors. This specific model addresses the stringent EMI requirements of modern electric vehicle charging systems.

Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference technical specifications such as current rating, voltage rating, and physical dimensions to ensure functional equivalence. Do not assume interchangeability without verifying all critical parameters.
