2443555-7

Overview

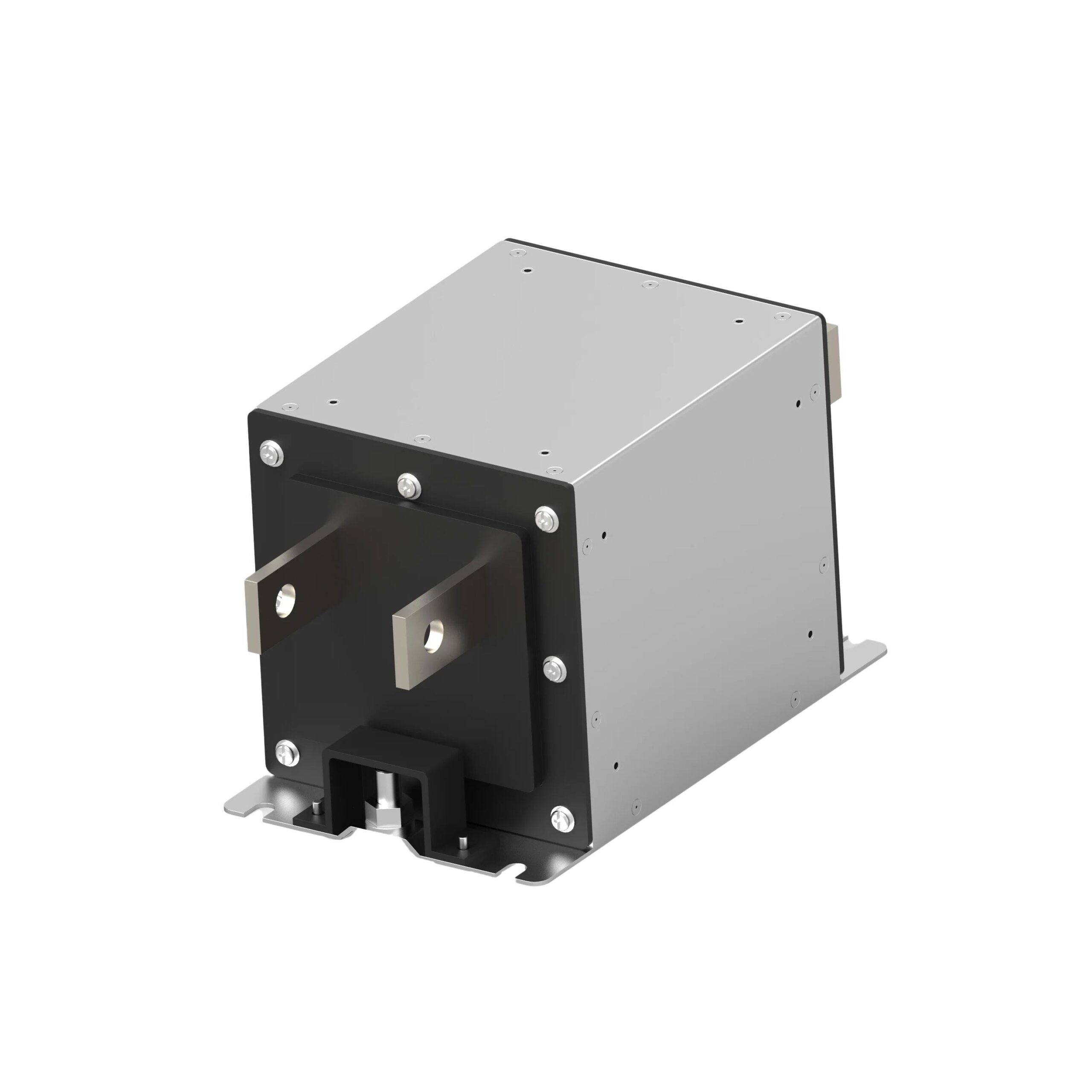

The TE Connectivity Corcom Filters model 2443555-7 is a DC EMI power line filter belonging to the EVX Series. It features a chassis mount installation style with busbar input and output termination types. The component has a voltage rating of 1.5 kVDC and a current rating of 300 A. Designed for high-power applications, it operates at a frequency of 0 Hz.

Feature Summary

• Provides effective electromagnetic interference attenuation in direct current circuits
• Supports high-voltage and high-current electrical environments
• Utilizes robust busbar connections for secure power interface

Applications

• Electric vehicle charging systems
• High-power industrial DC power conditioning
• Direct current distribution networks requiring EMI suppression

Procurement Notes

Verify the exact current rating against specific project requirements, as related models in this series may support different amperage levels such as 450 A or 600 A. Confirm that the busbar termination dimensions match the mechanical layout. Ensure the 1.5 kVDC voltage rating aligns with the system's operational limits before finalizing procurement decisions.

Selection Notes

Select this component when designing systems requiring high-capacity DC filtering with busbar interfaces. Compare against other EVX series variants to determine if higher current ratings like 300 A are sufficient or if alternative models are needed. Ensure the chassis mount form factor fits the available enclosure space and thermal management strategy.

Part Context

This part belongs to the EVX Series by TE Connectivity Corcom Filters, which specializes in high-performance power line filters. The series is engineered for demanding applications involving significant electrical loads. The 2443555-7 variant specifically addresses the needs of modern electric mobility infrastructure and heavy-duty DC power supplies.

Replacement Considerations

Public confirmed substitute part numbers are not available.
