2443555-8

Overview

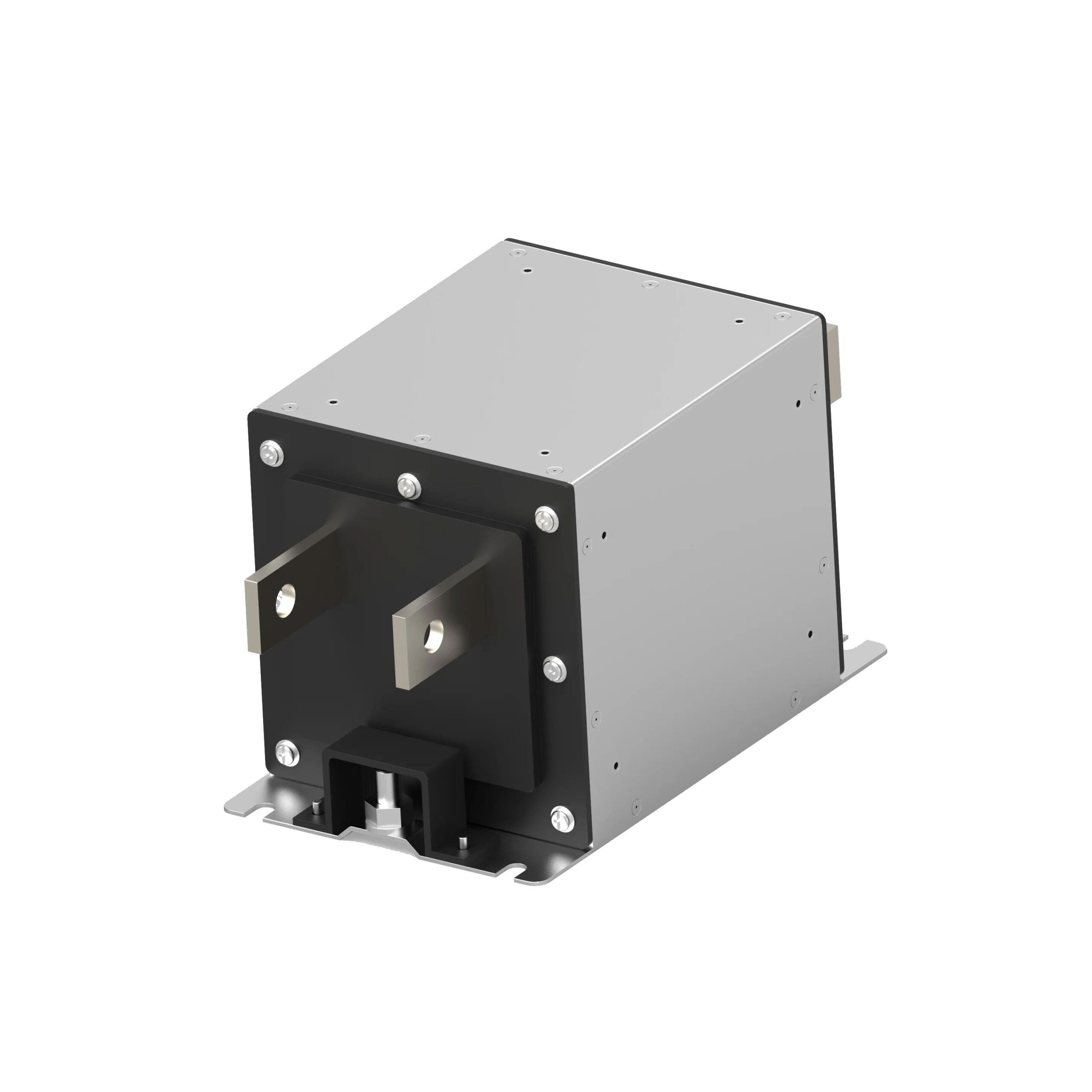

The TE Connectivity Corcom Filters model 2443555-8 is a DC EMI filter from the EVX Series. It features a 1500V (1.5kV) DC voltage rating and supports a maximum current capacity of 300 A. Designed for chassis mounting, it utilizes two-stage terminal post connections. The unit measures 250 mm in length, 140 mm in width, and 130 mm in height. It holds UL compliance certification.

Feature Summary

• Provides high-power DC line filtering with dual-stage terminal post architecture
• Engineered for robust chassis mounting applications
• Certified to UL safety standards

Applications

• High-power industrial converters
• DC power conditioning systems
• Industrial equipment requiring EMI suppression

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels. Confirm that the specific part number matches project requirements regarding voltage, current, and physical dimensions. Check for end-of-life status as availability may be limited. Ensure proper handling procedures are followed due to the heavy-duty nature of the busbar connections.

Selection Notes

Select this component when a high-current DC filter is required for industrial environments. The 300 A rating and 1.5 kV DC specification distinguish it from lower-capacity AC filters. Consider the chassis mount style and terminal post interface during mechanical integration planning. Verify thermal management needs based on the 100 C maximum operating temperature limit.

Part Context

This component belongs to the EVX Series of power line filters manufactured by TE Connectivity under the Corcom brand. The series includes various models with different current ratings and voltage specifications, such as the 2443555-9 and 2-2443555-0, catering to diverse high-power DC filtering requirements across industrial sectors.

Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Evaluate alternative EVX Series models or other TE Connectivity DC filters based on matching electrical ratings and mounting configurations.
