2450BP14C0100001T

Overview

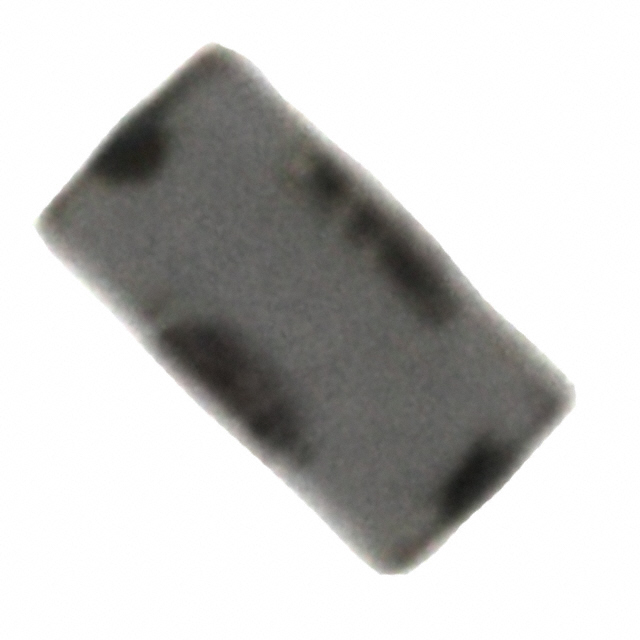

The Johanson Technology 2450BP14C0100001T is a surface-mount RF bandpass filter designed for wireless applications. It operates at a center frequency of 2.45 GHz with a bandwidth of 100 MHz and an insertion loss of 2 dB. The component utilizes a 0603 (1608 metric) package with four printed circuit board pads. It supports SMD/SMT mounting and functions within a temperature range of -40°C to +85°C.

Feature Summary

• Provides signal filtering for radio frequency applications
• Utilizes a compact surface-mount form factor

Applications

• WLAN systems
• Bluetooth devices
• Wireless sensor networks

Procurement Notes

Verify the specific suffix against manufacturer documentation, as Johanson Technology has implemented global part number revisions. Confirm that the requested component matches the current official designation to ensure compatibility with design specifications and supply chain records.

Selection Notes

Select this component when a 0603 footprint is required for 2.45 GHz filtering. Ensure the 100 MHz bandwidth aligns with the system's spectral requirements. Verify that the 2 dB insertion loss meets the link budget constraints for the intended wireless application.

Part Context

This component belongs to the Johanson Technology CP series of integrated passive components. These filters are engineered for high performance in compact wireless modules. The product line supports various industrial and consumer electronics requiring reliable RF signal conditioning.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
