2450BP14D0100001T

Overview

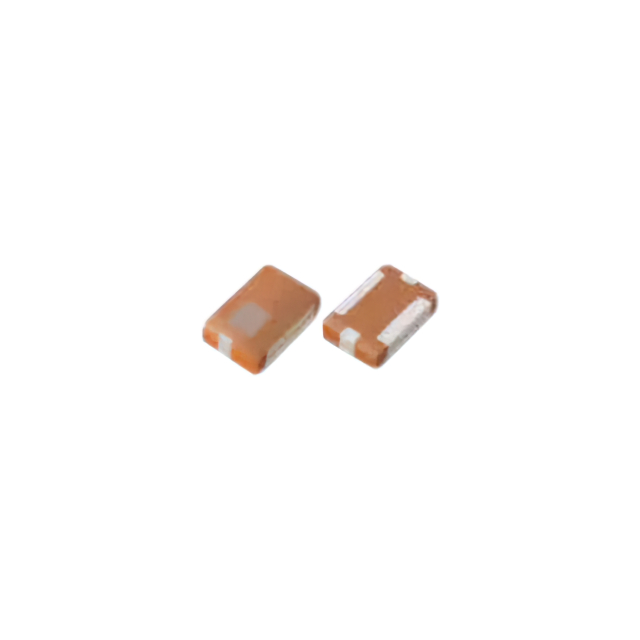

The Johanson Technology Inc. 2450BP14D0100001T is a surface-mount bandpass RF filter designed for the 2.4 GHz ISM band. It features a center frequency of 2.45 GHz with a bandwidth of 100 MHz and an insertion loss of 1.7 dB. The component operates within a temperature range of -40°C to +85°C and utilizes a 0603 (1608 metric) package measuring 1.60mm x 0.80mm x 0.70mm maximum height. It supports 50 Ohm impedance and is RoHS3 compliant.

Feature Summary

• Integrated passive component packaging for compact board space
• Surface mount design for automated assembly
• RoHS3 compliant construction

Applications

• Wireless LAN modules
• Bluetooth devices
• Zigbee transceivers

Procurement Notes

Verify the complete manufacturer part number, including suffixes, against official Johanson Technology documentation to ensure correct specifications. Confirm that the required package type and termination style match the target PCB layout. Check current datasheets for any global part number changes or obsolescence notices prior to finalizing procurement orders.

Selection Notes

Select this component when a 0603 footprint is required for 2.4 GHz filtering applications. Ensure the 1.7 dB insertion loss meets system link budget requirements. Verify that the 100 MHz bandwidth aligns with the specific channel spacing needs of the wireless protocol in use.

Part Context

This part belongs to the BP series of bandpass filters from Johanson Technology. These components are engineered for high-volume consumer electronics manufacturing, offering consistent performance across the 2.4 GHz industrial, scientific, and medical frequency bands.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
