2450BP15C0100001E

Overview

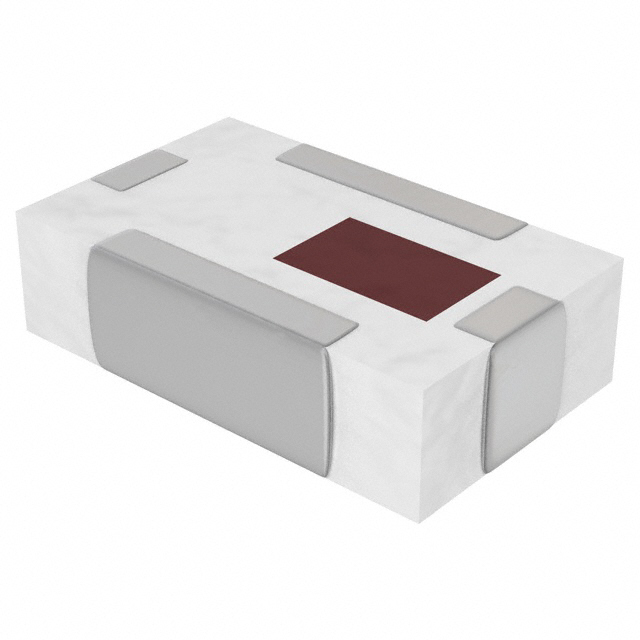

The 2450BP15C0100001E is a surface-mount bandpass filter manufactured by Johanson Technology Inc. Designed for the 2.4 GHz ISM band, it operates with a center frequency of 2.45 GHz and a bandwidth of 100 MHz. The component covers a frequency range from 2.4 GHz to 2.5 GHz. It features an insertion loss of 2.2 dB and utilizes a 0805 (2012 Metric) package measuring 2.00 mm x 1.25 mm x 0.65 mm maximum height.

Feature Summary

• Provides signal conditioning through bandpass filtering in the 2.4 GHz ISM band
• Integrates impedance matching and filtering within a compact SMD footprint
• Supports applications requiring simultaneous reception or transmission in Wi-Fi and Bluetooth protocols

Applications

• Wi-Fi modules operating under IEEE 802.11 standards
• Bluetooth and BLE transceivers
• WLAN devices requiring interference rejection
• Zigbee communication systems

Procurement Notes

Verify the specific suffix 'C' against the manufacturer's global part numbering system to ensure correct identification, as Johanson Technology has updated its naming conventions. Confirm that the 0805 package dimensions and 2.45 GHz center frequency align with the target RF circuit design requirements before finalizing procurement orders.

Selection Notes

Select this component when a low-profile bandpass filter is required for 2.4 GHz wireless applications. The 0805 case size offers a balance between performance and board space efficiency. Ensure the 100 MHz bandwidth meets the spectral mask requirements of the specific protocol implementation, such as standard Wi-Fi or Bluetooth channels.

Part Context

This component belongs to Johanson Technology's BP series of integrated passive devices. These filters are designed to replace discrete LC networks, reducing component count and improving reliability in high-volume consumer electronics. The product line supports various wireless standards including Wi-Fi, Bluetooth, and Zigbee.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs using the 2450BP15B0100001E datasheet, as both share similar electrical specifications and package dimensions.
