2450BP15Q0100001E

Overview

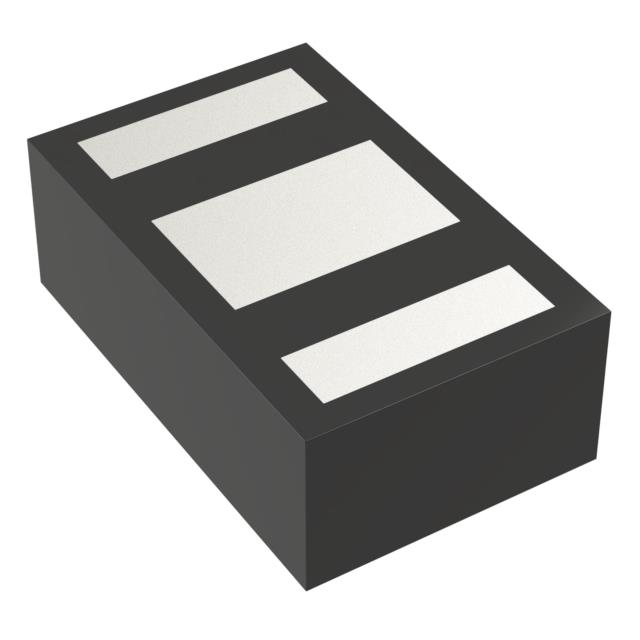

The Johanson Technology 2450BP15Q0100001E is a surface-mount bandpass filter designed for signal conditioning applications. It operates within the 2.4 GHz ISM band, specifically targeting the 2.45 GHz center frequency with a 100 MHz bandwidth. The component utilizes an LGA package in the EIA 0805 (2012 metric) case size, measuring 2.00 mm x 1.25 mm with a maximum height of 0.65 mm. It features SMD/SMT termination and maintains a 50-ohm impedance. The device supports a wide operating temperature range from -40°C to +85°C and complies with RoHS standards.

Feature Summary

• Integrates bandpass filtering functionality within a compact LGA footprint
• Optimized for 2.45 GHz wireless communication protocols
• Supports surface-mount assembly processes

Applications

• Bluetooth Low Energy (BLE) transceivers
• Wi-Fi enabled IoT modules
• Zigbee sensor networks
• Wireless LAN devices

Procurement Notes

Verify the specific suffix 'Q' against the manufacturer's current global part numbering guidelines to ensure functional equivalence with legacy designations. Confirm that the LGA package variant matches the intended PCB land pattern requirements. Check regional distribution availability as supply status may vary by region. Ensure compliance with local environmental regulations regarding RoHS certification before final procurement approval.

Selection Notes

Select this component when a low-profile solution is required for 2.4 GHz signal integrity. The 0805 LGA form factor offers space efficiency compared to larger packages. Consider thermal management capabilities within the specified -40°C to +85°C range. Verify insertion loss specifications against system link budget requirements. Ensure the 50-ohm impedance matches the surrounding RF circuitry for optimal power transfer.

Part Context

This component belongs to Johanson Technology's BP series of integrated passive devices. These filters are engineered to replace discrete LC networks, reducing board space and improving consistency. The 2450 prefix indicates operation around the 2.45 GHz frequency band. The product line targets high-volume consumer electronics requiring reliable RF performance in constrained spaces.

Replacement Considerations

Cross-reference with Johanson part number 2450BP15B0100001E for potential functional similarity. Verify package dimensions and electrical parameters before substitution. Consult official documentation to confirm if the 'Q' suffix denotes a specific tape-and-reel or packaging variation rather than a different electrical specification.
