2450FM07C0041001T

Overview

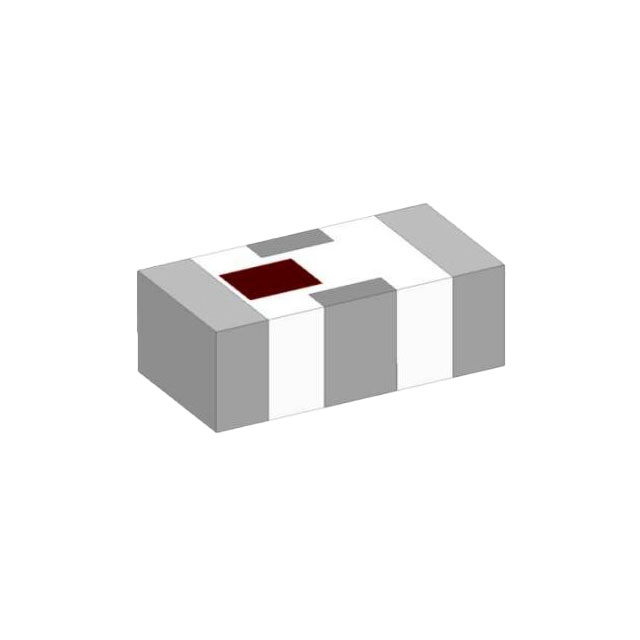

The Johanson Technology 2450FM07C0041001T is a low-pass RF filter with a 2.4GHz center frequency and 100MHz bandwidth. It operates in the 2400-2500 MHz passband range with an insertion loss of 0.75dB. The component utilizes a 0402 (1005 metric) surface-mount package measuring 1.00mm x 0.50mm x 0.40mm maximum height. It features four PCB pads and is RoHS3 compliant. Designed for impedance matching, it supports applications including WiFi, Bluetooth, and Zigbee.

Feature Summary

• Impedance matched design optimized for specific Nordic Semiconductor chipsets
• Low-profile 0402 surface-mount footprint for compact integration
• RoHS3 compliant construction for environmental safety

Applications

• WiFi connectivity modules
• Bluetooth wireless devices
• Zigbee sensor networks

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS3 compliance status and MSL classification prior to assembly. Ensure storage conditions meet moisture sensitivity requirements. Validate package dimensions against PCB footprint specifications. Check for obsolete status updates as availability may vary.

Selection Notes

Select this component when integrating with Nordic Semiconductor nRF52805-CAAA chipsets requiring precise impedance matching. Choose the 0402 package size for space-constrained designs. Consider the 0.75dB insertion loss specification for signal integrity requirements. Verify compatibility with 2400-2500 MHz operational bands for IoT applications.

Part Context

This part belongs to Johanson Technology's integrated passive components series, designed to replace discrete solutions. It serves as a front-end filter for 2.4GHz radio applications. The component integrates filtering and impedance matching functions into a single miniature package, reducing board space and simplifying circuit design for wireless communication devices.

Replacement Considerations

Legacy part number 2450FM07C0041T is identified as an equivalent designation. Verify pinout and electrical characteristics before substitution. Consult official documentation for any functional differences between legacy and current revisions.
