2450FM07D0034001T

$0.22

Description：RF FILTER 2.4GHZ-2.5GHZ 0402
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1ea39859299f Category: RF Filters Brand: Johanson Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER 2.4GHZ-2.5GHZ 0402
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Frequency：2.4GHz ~ 2.5GHz
Bandwidth：100MHz
Filter Type：-
Ripple：-
Insertion Loss：0.75dB
Mounting Type：Surface Mount
Package / Case：0402 (1005 Metric), 4 PC Pad
Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max)：0.016" (0.40mm)

Download product information

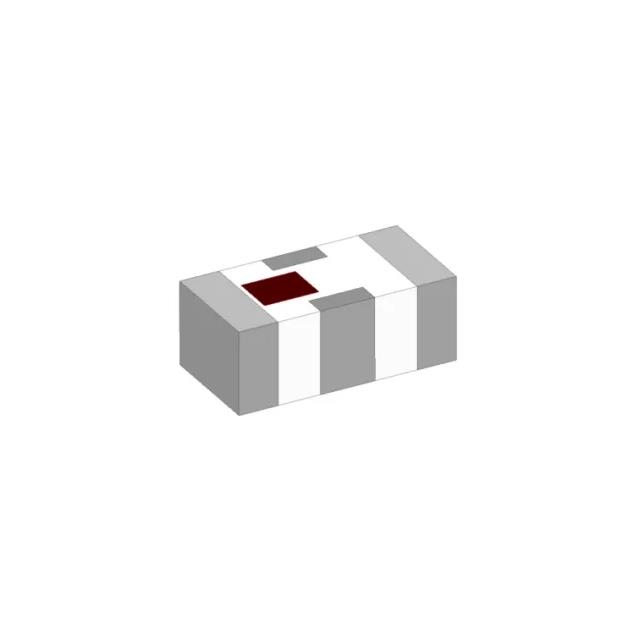

2450FM07D0034001T

Overview

The Johanson Technology Inc. 2450FM07D0034001T is a miniature RF filter designed for EMI/RFI suppression and impedance matching. It operates within the 2.4GHz to 2.5GHz frequency range with a 100MHz bandwidth. The component features an insertion loss of 0.75dB and utilizes a 0402 (1005 Metric) surface mount package with four PCB pads. Constructed using LTCC technology, it provides a low-pass filtering solution optimized for specific wireless chipsets.

Feature Summary

Impedance matched front-end filter architecture
Optimized integration with Semtech SX1280 and SX1281 chipsets
Miniature monolithic structure utilizing LTCC technology

Applications

EMI/RFI suppression in wireless devices
Front-end filtering for Semtech LoRa chipsets
Signal conditioning in compact IoT modules

Procurement Notes

Verify the complete part number including the suffix '001T' against official Johanson Technology documentation to ensure correct packaging and specifications. Confirm RoHS3 compliance status and MSL rating requirements for your assembly process. Cross-reference datasheet revision dates to validate technical parameters before procurement.

Selection Notes

Select this component when a low-profile, impedance-matched filter is required for 2.4GHz ISM band applications. It is specifically engineered for compatibility with Semtech SX1280/SX1281 radios. Ensure the 0402 footprint fits the design constraints and that the 0.75dB insertion loss meets system link budget requirements.

Part Context

This component belongs to Johanson's portfolio of LTCC-based RF filters. It serves as a legacy replacement or equivalent for part number 2450FM07D0034T. The device integrates passive components into a single ceramic structure, reducing board space compared to discrete solutions while maintaining performance in high-frequency environments.

Replacement Considerations

The legacy part number 2450FM07D0034 may serve as a functional reference. Verify pinout compatibility and electrical tolerances if substituting with other 0402 LPF models from different manufacturers.
