2450LP07C0100001T

Overview

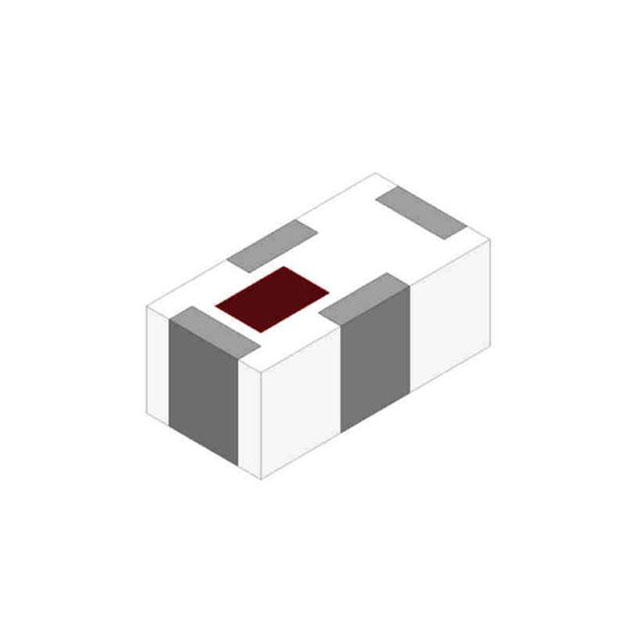

The 2450LP07C0100001T is a surface-mount low-pass RF filter manufactured by Johanson Technology Inc. Designed for the 2.45 GHz frequency range, this component operates within a 100 MHz bandwidth and exhibits an insertion loss of 0.6 dB. It is housed in a compact 0402 (1005 metric) package with four printed circuit board contacts. The physical dimensions are 1.00 mm in length, 0.50 mm in width, and a maximum height of 0.40 mm. The device supports operating temperatures from -40°C to +85°C and complies with RoHS3 standards.

Feature Summary

• Miniature SMD construction optimized for space-constrained designs
• Low insertion loss characteristics for signal integrity preservation
• Integrated passive design suitable for Bluetooth, IoT, and WiFi applications

Applications

• Bluetooth Low Energy (BLE) modules
• Internet of Things (IoT) devices
• WiFi connectivity systems
• Vehicle-to-Everything (V2X) communication units
• Wearable technology electronics

Procurement Notes

Verify the specific suffix 'T' indicates tape and reel packaging when sourcing. Confirm the manufacturer part number matches exactly to ensure correct electrical specifications and package type. Check current availability status as supply levels may vary. Ensure compatibility with standard surface mount assembly processes. Validate that the 0402 footprint aligns with the target PCB layout requirements.

Selection Notes

Select this component when a small form factor is required for 2.4 GHz band filtering. The 0402 case size offers significant space savings compared to larger packages. Consider the 0.6 dB insertion loss for sensitive receiver chains. Verify thermal performance meets the -40°C to +85°C operational range. Ensure the 100 MHz bandwidth specification satisfies the system's spectral requirements.

Part Context

This part belongs to Johanson Technology's LP series of low-pass filters. It is designed for high-volume consumer electronics manufacturing. The component integrates passive elements into a single ceramic structure. It replaces discrete filter networks to reduce assembly complexity. The product line focuses on miniaturization for modern wireless standards.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
