2450LP15B0050001E

Overview

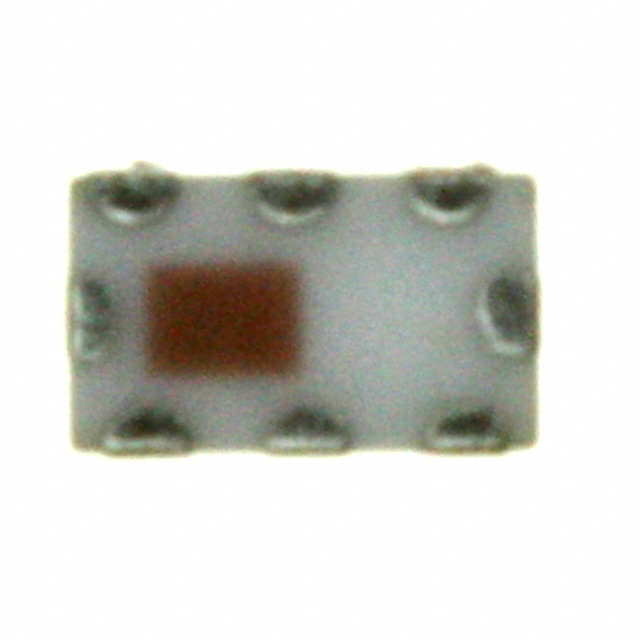

The Johanson Technology Inc. 2450LP15B0050001E is a surface-mount RF low-pass filter designed for signal conditioning applications. It operates with a center frequency of 2.45 GHz and features a bandwidth of 100 MHz. The component exhibits an insertion loss of 0.5 dB and is housed in a compact 0805 (2012 metric) package measuring 2.00 mm x 1.25 mm x 1.05 mm maximum height. It supports operation within a temperature range of -40°C to +85°C and complies with RoHS3 standards.

Feature Summary

• Provides low-pass filtering characteristics for RF signal paths
• Designed for integration into compact surface-mount layouts
• Operates reliably across extended industrial temperature ranges

Applications

• RF front-end filtering in wireless communication modules
• Signal conditioning for 2.4 GHz ISM band devices
• Harmonic suppression in transmitter output stages

Procurement Notes

Verify the specific manufacturer part number against official Johanson Technology documentation to ensure compatibility with design requirements. Confirm that the 0805 package dimensions and electrical specifications align with the target PCB layout and performance needs before finalizing procurement decisions.

Selection Notes

Select this component when a low insertion loss of 0.5 dB is required at the 2.45 GHz center frequency. The 100 MHz bandwidth suits applications needing precise filtering near the 2.4-2.5 GHz range. Ensure the 0805 footprint fits the available board space and that the operating temperature range meets environmental constraints.

Part Context

This component belongs to the Johanson Technology 2450 series, which focuses on integrated passive devices for wireless connectivity. The series includes baluns, diplexers, and filters optimized for 2.4 GHz and 5 GHz bands. The 2450LP15B0050001E specifically addresses low-pass filtering needs within this ecosystem, complementing other signal conditioning elements.

Replacement Considerations

Consult official Johanson Technology substitution guides for verified alternatives. Cross-reference technical parameters such as impedance, bandwidth, and package size to ensure functional equivalence without compromising circuit performance.
