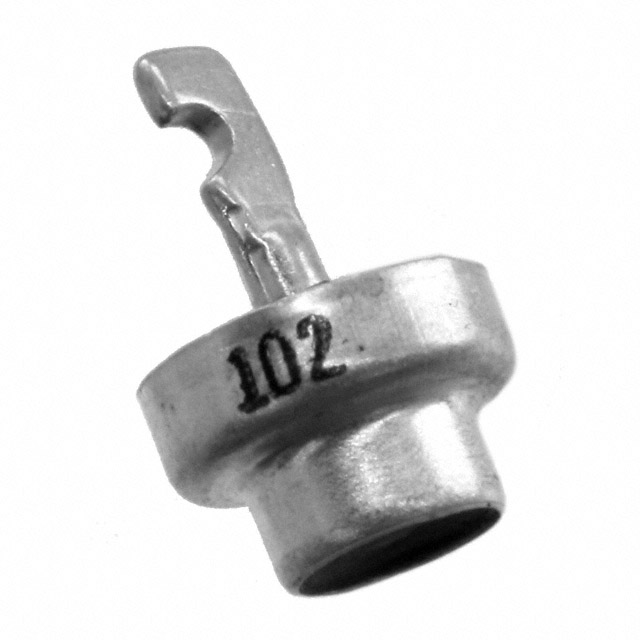

2451-001-X5U0-102PLF

$19.13

Description：CAP FEEDTHRU 1000PF 500V AXIAL
Series：2451
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:9ad20392a599 Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 1000PF 500V AXIAL
Series：2451
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：500V
Current：20 A
Operating Temperature：-55°C ~ 85°C
Mounting Type：-
Package / Case：Axial, Discoidal - 1 Notched, 1 Missing Lead
Size / Dimension：0.281" Dia x 0.186" L (7.14mm x 4.72mm)
Capacitance：1000 pF
Tolerance：0%, +100%
DC Resistance (DCR) (Max)：-
Insertion Loss：-
Temperature Coefficient：X5U
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

2451-001-X5U0-102PLF

Overview

The 2451-001-X5U0-102PLF is an axial lead EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. This component features a capacitance value of 1000 pF (1 nF) with a voltage rating of 500 VDC. It operates within a temperature range of -55°C to +85°C. The physical dimensions are specified as 7.14 mm in diameter and 4.72 mm in length. The device utilizes an axial lead configuration for mounting.

Feature Summary

Provides electromagnetic interference suppression through high-frequency signal shunting
Capacitive coupling design for noise attenuation in power lines
Axial lead construction for through-hole integration

Applications

Power supply input filtering
Control panel wiring protection
Electronic equipment chassis grounding

Procurement Notes

Verify the specific suffix X5U0-102PLF against official datasheets to confirm dielectric type and tolerance specifications. Ensure the 500V DC rating aligns with system requirements. Confirm axial lead compatibility with PCB or panel mounting constraints. Check RoHS compliance status via manufacturer documentation prior to order placement.

Selection Notes

Select this component for applications requiring compact EMI filtering at moderate voltages. The 1000 pF capacitance offers a balance between noise suppression and leakage current. Consider the axial form factor for space-constrained environments where radial components may not fit. Verify thermal stability requirements against the -55°C to +85°C operating range.

Part Context

This part belongs to the Tusonix family of multilayer bushing and feedthrough capacitors. These components are designed for high-reliability applications in aerospace, military, and industrial sectors. The series emphasizes low impedance paths for high-frequency noise while maintaining high voltage isolation capabilities.
