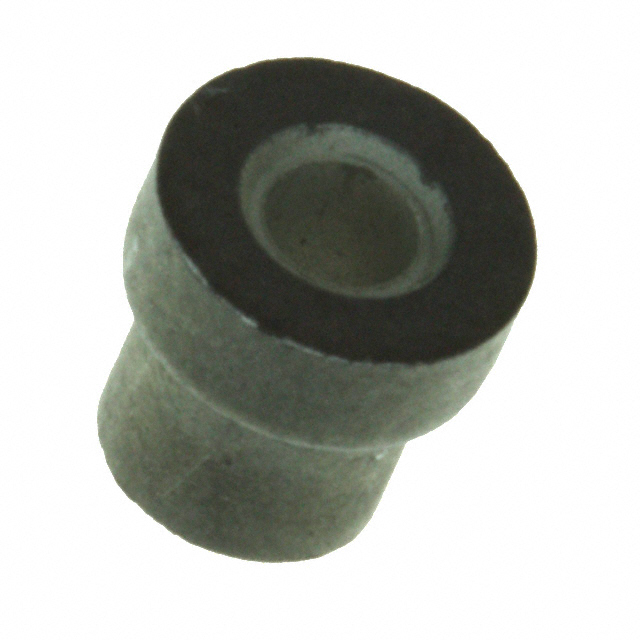

2461-000-X7V0-152PLF

Description：CAP FEEDTHRU 1500PF 100V AXIAL
Series：2461
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:dcecb89ee4c0 Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 1500PF 100V AXIAL
Series：2461
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：100V
Current：-
Operating Temperature：-55°C ~ 125°C
Mounting Type：Chassis Mount
Package / Case：Axial, Shoulder - No Leads
Size / Dimension：0.165" Dia x 0.165" L (4.19mm x 4.19mm)
Capacitance：1500 pF
Tolerance：0%, +100%
DC Resistance (DCR) (Max)：-
Insertion Loss：-
Temperature Coefficient：X7V
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

2461-000-X7V0-152PLF

Overview

The 2461-000-X7V0-152PLF is an axial feed-through capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance value of 1500 pF and a rated voltage of 100 V. The component utilizes X7V dielectric material, providing stable performance across temperature variations. Its physical dimensions are specified as 0.165 inches in diameter and 0.165 inches in length (4.19 mm x 4.19 mm). This device is designed for electromagnetic interference filtering applications.

Feature Summary

Axial leaded feed-through construction for direct panel mounting
X7V dielectric material for consistent electrical characteristics
Compact cylindrical form factor suitable for space-constrained designs

Applications

Electromagnetic interference (EMI) filtering in electronic circuits
Power supply input/output noise suppression
Signal line protection in sensitive instrumentation

Procurement Notes

Verify the manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components, to ensure authenticity. Confirm the part number matches the specific X7V dielectric and 1500 pF capacitance rating. Check datasheet specifications for tolerance and thermal limits before integration. Ensure compliance with relevant environmental regulations such as RoHS requirements applicable to your region.

Selection Notes

Select this component when axial feed-through topology is required for effective EMI suppression. The X7V dielectric offers a balance of stability and cost-effectiveness for general-purpose filtering. Consider the 100 V rating and 1500 pF capacitance against circuit requirements. Evaluate the compact 4.19 mm dimensions for compatibility with existing board layouts or panel cutouts.

Part Context

This component belongs to the 2461 series of feed-through capacitors from Tusonix/CTS. These filters are engineered for high-frequency noise attenuation in both commercial and industrial environments. The axial design facilitates easy installation through chassis panels, making them suitable for shielding critical signal paths from external electromagnetic disturbances.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical parameters if considering alternative manufacturers. Ensure any replacement maintains the axial feed-through configuration and similar dimensional constraints for mechanical fit.
