2461-001-X7V0-152PLF

Overview

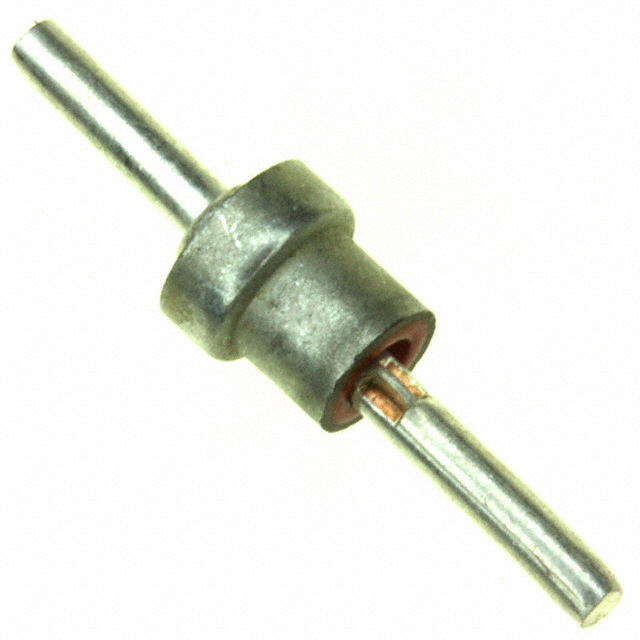

The 2461-001-X7V0-152PLF is an axial lead-through capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. This component belongs to the EMI feedthrough filter category and is designed for high-frequency noise suppression in electronic circuits. It features a capacitance value of 1500 pF with a voltage rating of 100 V. The device utilizes an X7V dielectric material, providing stable performance across varying temperature conditions. Its axial configuration allows for straightforward integration into panel-mounted applications where direct grounding is required.

Feature Summary

• Provides effective electromagnetic interference (EMI) attenuation through feedthrough architecture
• Utilizes X7V dielectric material for consistent electrical characteristics
• Features axial leads for secure mechanical mounting and grounding

Applications

• Panel-mounted EMI filtering for sensitive electronic equipment
• Power supply input/output noise suppression
• Signal line protection against radio frequency interference

Procurement Notes

Verify the specific manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components, when sourcing this component. Confirm that the part number matches the exact suffix X7V0-152PLF to ensure the correct 1500 pF capacitance and 100 V rating. Check current availability status as distribution channels may vary for legacy or specialized filter components.

Selection Notes

Select this component when axial mounting and direct chassis grounding are necessary for EMI reduction. Ensure the operating voltage does not exceed 100 V and that the 1500 pF capacitance aligns with the target frequency range for noise suppression. Verify compatibility with the intended PCB or panel hole dimensions for proper installation.

Part Context

This component is part of the broader family of EMI feedthrough filters produced by Tusonix. These filters are engineered to attenuate unwanted high-frequency signals while allowing desired power or signal currents to pass. The axial design distinguishes it from surface-mount alternatives, offering robust mechanical stability for industrial and aerospace applications requiring reliable noise filtration.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official Tusonix or CTS catalogs for equivalent axial feedthrough capacitors with matching 1500 pF and 100 V specifications.
