Product Detailed Parameters
- Description：CAP FEEDTHRU 470PF 200V AXIAL
- Series：2463
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：-
- Operating Temperature：-55°C ~ 85°C
- Mounting Type：-
- Package / Case：Axial, Shoulder - No Leads
- Size / Dimension：0.099" Dia x 0.125" L (2.51mm x 3.18mm)
- Capacitance：470 pF
- Tolerance：±20%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：12dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

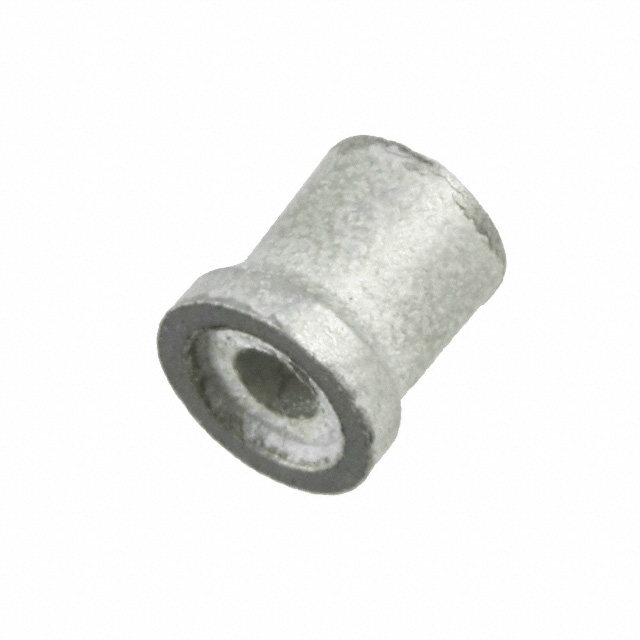

The 2463-001-X5S0-471MLF is a feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance value of 470 pF with a rated voltage of 200V. The component operates within a temperature range of -55°C to 85°C and utilizes an axial package configuration characterized by shoulder leads without additional leads.
Feature Summary
- Provides effective electromagnetic interference filtering through feedthrough architecture
- Utilizes axial mounting configuration with shoulder leads for secure installation
- Maintains operational stability across a wide industrial temperature spectrum
Applications
- Electromagnetic interference suppression in electronic circuits
- Power line filtering applications requiring axial mounting
- Industrial equipment protection against high-frequency noise
Procurement Notes
Verify the specific suffix X5S0-471MLF matches project requirements, as variations exist within the 2463 series. Confirm RoHS compliance status and lead-free specifications directly with the manufacturer or authorized distributors prior to ordering. Ensure the axial shoulder lead style aligns with available PCB footprint or panel mount constraints.
Selection Notes
Select this component when a 470 pF capacitance at 200V is required for EMI mitigation. The axial form factor suits applications where traditional radial or surface-mount packages are unsuitable. Consider the -55°C to 85°C operating range to ensure reliability under expected environmental conditions compared to broader temperature variants.
Part Context
This part belongs to the 2463 series of feedthrough capacitors from Tusonix/CTS. These components are designed for high-performance noise suppression in sensitive electronic systems. The series offers various capacitance and voltage ratings, with the 2463-001 variant specifically providing 470 pF at 200V in an axial configuration.
Replacement Considerations
Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. Verify compatibility with alternative axial feedthrough capacitors based on matching capacitance, voltage rating, and physical dimensions.
