2463-002-X5U0-152P

Overview

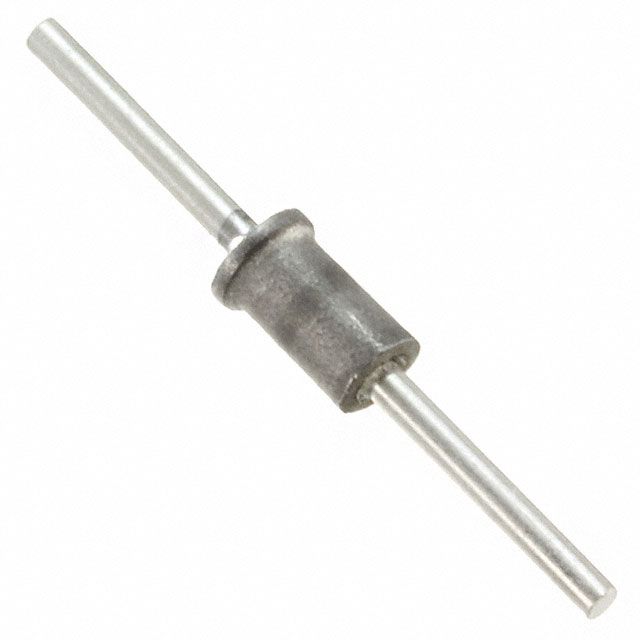

The Tusonix 2463-002-X5U0-152P is an EMI feedthrough filter with a capacitance of 1.5 nF and a voltage rating of 200 V. It supports a current of 10 A and operates within a temperature range of -55 °C to +125 °C. The component features an axial, shoulder package with dimensions of 2.51 mm diameter.

Feature Summary

• Provides electromagnetic interference suppression via feedthrough capacitor design
• Supports high current handling capability for power line applications
• Operates reliably across extended industrial temperature ranges

Applications

• Electromagnetic interference filtering in electronic circuits
• Power line conditioning for sensitive equipment
• Industrial control system signal integrity protection

Procurement Notes

Verify the manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components. Confirm the specific model number 2463-002-X5U0-152P matches the required 1.5 nF capacitance and 200 V rating. Ensure the axial shoulder package style aligns with your board layout requirements before procurement.

Selection Notes

Select this component when high-frequency noise attenuation is required on lines carrying up to 10 A. The 200 V rating suits moderate voltage applications. Verify that the axial leaded form factor fits the available mounting space and that the operating temperature range meets environmental conditions.

Part Context

This part belongs to the Tusonix series of EMI feedthrough filters manufactured by CTS Electronic Components. These components are designed to suppress radio frequency interference while maintaining signal integrity in power and data lines.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official distributor databases for cross-references based on identical electrical specifications.
