2474-06L

Fixed Inductors Overview

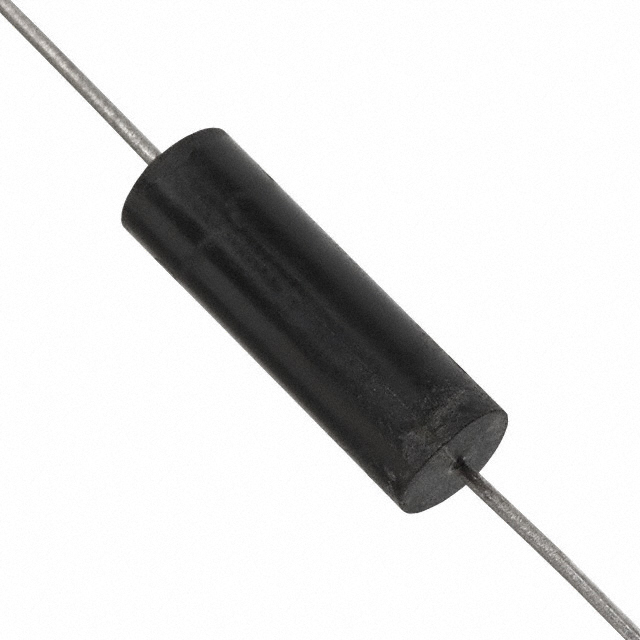

The Delevan 2474-06L is a fixed axial lead power inductor designed for through-hole mounting. It features an epoxy molded case and a high resistivity ferrite core to achieve low DC resistance. The component has a nominal inductance of 2.7 µH with a tolerance of ±10%. It supports a maximum DC current of 5.03 A and has a maximum DC resistance of 14 mΩ. Physical dimensions include a length of 18.8 mm and a diameter of 6.1 mm, with standard leads.

Fixed Inductors Feature Summary

• Epoxy encapsulated construction for mechanical protection
• High resistivity ferrite core for efficient magnetic performance
• Axial lead configuration suitable for PCB through-hole assembly

Fixed Inductors Applications

• DC-DC converter circuits
• Power signal filtering
• General purpose power inductor applications

Fixed Inductors Procurement Notes

Verify RoHS compliance status as sources indicate non-compliance or detailed requirements. Confirm lead availability and manufacturing lead times directly with the supplier. Ensure ordering quantities match factory packaging specifications. Validate that the specific suffix matches the required electrical parameters before procurement.

Fixed Inductors Selection Notes

Select this component for applications requiring moderate inductance with high current handling capabilities. The axial lead format facilitates easy insertion into printed circuit boards. Consider the physical size constraints and thermal operating range when integrating into the design.

Fixed Inductors Part Context

This part belongs to the 2474 series of power inductors manufactured by API Delevan. The series offers various inductance values tailored for power electronics. The 2474-06L specifically targets applications needing robust performance in a compact axial package.

Fixed Inductors Replacement Considerations

Check datasheets for equivalent parts from other manufacturers offering similar inductance and current ratings. Verify dimensional compatibility for through-hole mounting. Ensure core material and saturation characteristics meet the original design requirements.
